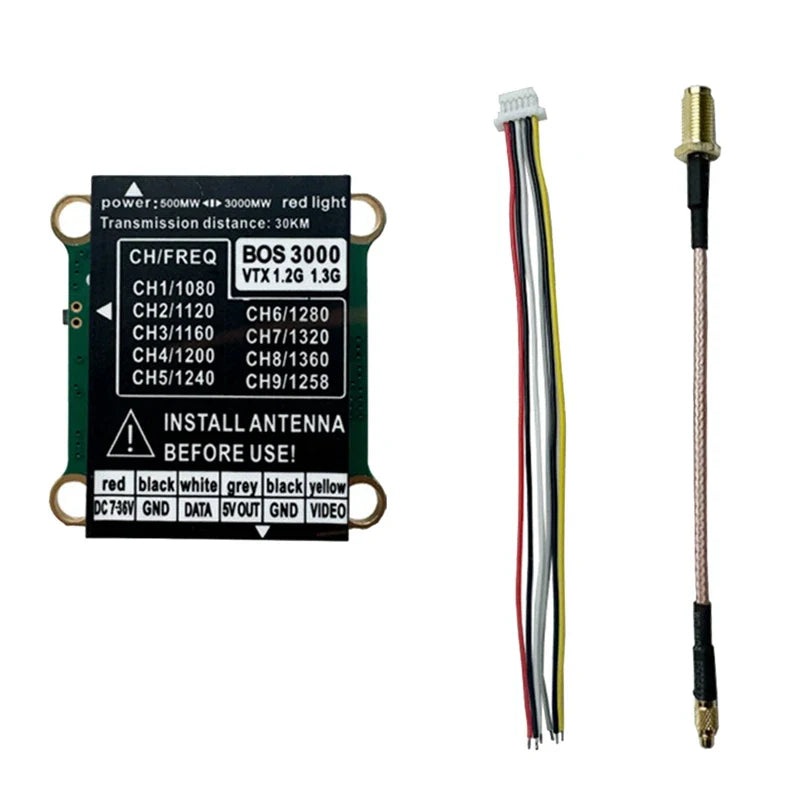

1.2G 1.3G 3W 9CH VTX – High Power 3000mW FPV Transmitter for DIY FPV Drones

Overview

The 1.2G/1.3G 3W VTX is a powerful FPV video transmitter designed for long-distance flights and DIY FPV drone applications. With adjustable power levels up to 3000mW. a 9-channel frequency band. and wide voltage input support from 7-36V. this transmitter ensures exceptional performance and versatility. It features temperature control protection to prevent overheating and supports standard 30.5×30.5mm (M3) mounting holes. making it compatible with most drone builds.

Features

1. Adjustable Power Levels:

   • Two power options: 500mW for shorter distances and 3000mW for long-range applications.

   • Includes Pit Mode for safe setup and configuration.

2. Wide Frequency Range:

   • Operates within the 1.2G/1.3G bands (1080MHz-1360MHz). offering 9 selectable channels.

   • Frequency stability of 100KHz ensures a consistent and clear signal.

3. Wide Voltage Input:

   • Supports input from 7-36V. accommodating 2-8S batteries. perfect for a variety of FPV systems.

4. Temperature Protection:

   • Built-in temperature control protection prevents overheating and hardware damage.

5. Robust Build and Mounting:

   • Compact design with 30.5×30.5mm (M3) mounting holes for easy integration.

   • Enhanced heat dissipation and impact resistance for durability.

6. Versatile Connectivity:

   • MMCX antenna interface ensures a secure connection.

   • SH1.25 6-pin cable interface simplifies installation.

Specifications

Parameter	Details
Frequency Band	1080MHz-1360MHz
Channels	9
Channel Frequencies	1080/1120/1160/1200/1240/1280/1320/1360/1258 MHz
Output Power	500mW / 3000mW / Pit Mode
Frequency Stability	100KHz (Typical)
Antenna Port Impedance	50 Ohms
Input Voltage	DC 7-36V (2-8S Battery)
Output Voltage	5V @ 600mA
Antenna Interface	MMCX
Video Format	PAL/NTSC
Working Temperature	-10 to +60
Dimensions	36x35x10mm
Installation Holes	30.5×30.5mm (M3)
Material	PCB
Color	Random (Color may vary)

Applications

The 1.2G/1.3G 3W VTX is designed for a range of FPV and DIY drone projects. including:

• Long-Distance Flights: Suitable for professional and recreational FPV enthusiasts requiring extended transmission range.

• DIY FPV Drones: Easily integrates into custom drone builds with standard mounting holes.

• Complex Environments: High power and frequency stability provide reliable performance in challenging terrains.

Package Includes

• 1 x 1.2G/1.3G 3W VTX Transmitter Kit

Note

• The product color may vary due to different manufacturing batches.

• Ensure the transmitter is used in compliance with local laws and regulations.

• Light reflection and display differences may cause minor color discrepancies.

The 1.2G/1.3G 3W VTX combines high power. durability. and versatile features. making it the perfect choice for FPV pilots and drone builders looking for a reliable and high-performance video transmitter. Whether for long-range flights or custom FPV setups. this VTX delivers unmatched quality and performance.
