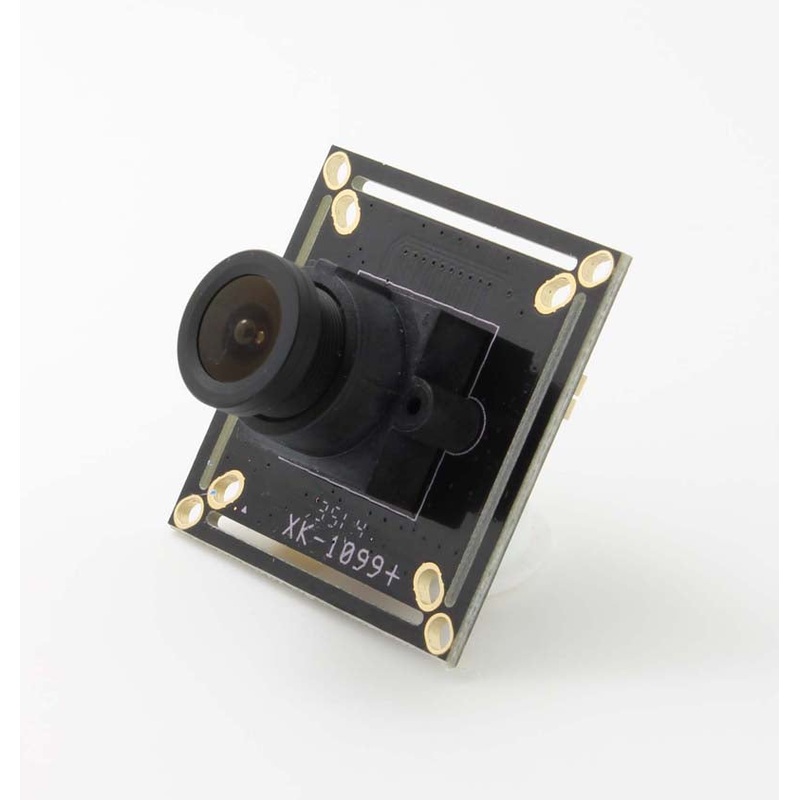

This is the supper light quality CMOS Camera good for FPV use.
Specifications:
– Size: 32*32*45mm
– Resolution: PAL: 720H x 576V
– Effective resolution: PAL: 976H582V NTSC: 976Hx494V
– System:PAL/NTSC
– Horizontal resolution:800TVL
– Min lumen: 0.1LUX/F1.2
– SNR: 48dB
– Video output 1.0Vp-p/75
– auto gain: 0.25/0.50/0.75/1.00 max 55dB
– Gamma: 0.45/1.0
– Lens: 3.6MM/2.5mm/2.8mm optional
– Voltage: DC 6-15V(2-3s LIPO)
– Current: 20MA
– Tep: -20–60
