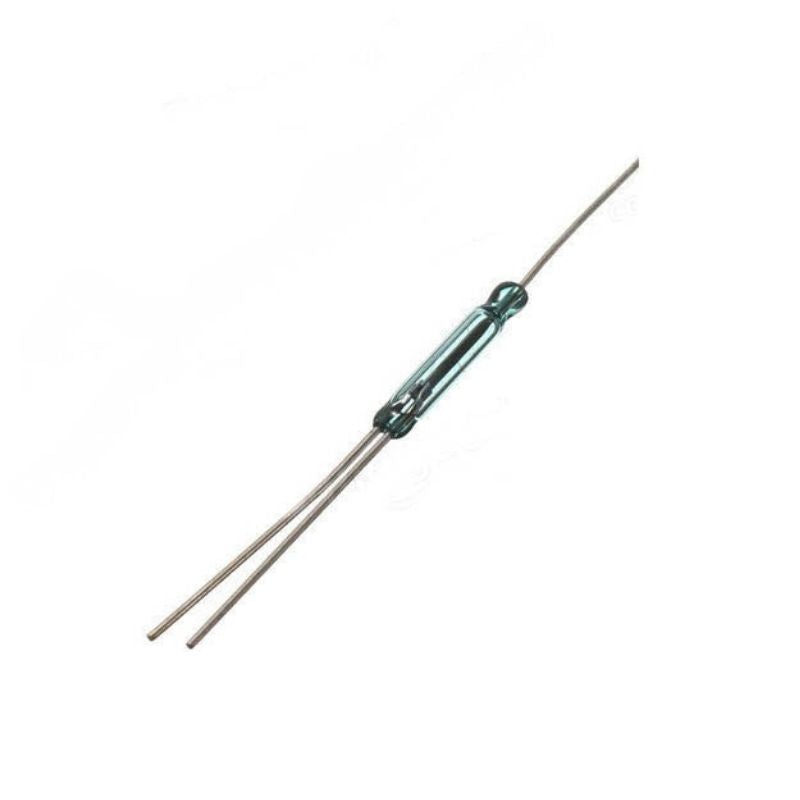

1088717 – REED SWITCH 1P2T NO/NC 2X13MM GLASS AXIAL LEAD 0.5A@200V

Switching power(max) 5W
DC switching voltage(max) 175V
AC switching voltage(max) 125V
DC switching current(max) 400mA
AC switching current(max) 280mA
Carry current DC AC effective value (max) 0.5A
Breakdown voltage (minimum) 200V
Contact resistance (initial maximum value) 140mW
Contact resistance (initial typical value) 120mW
Contact capacitance (max) 0.8pF
Release time (max) 1ms (power on)
Bounce time (max) 1.5ms (power on)
Working time (max) 1ms (power on)
Working range 1030AT
Total length 53mm
Glass size 14×2.5mm
