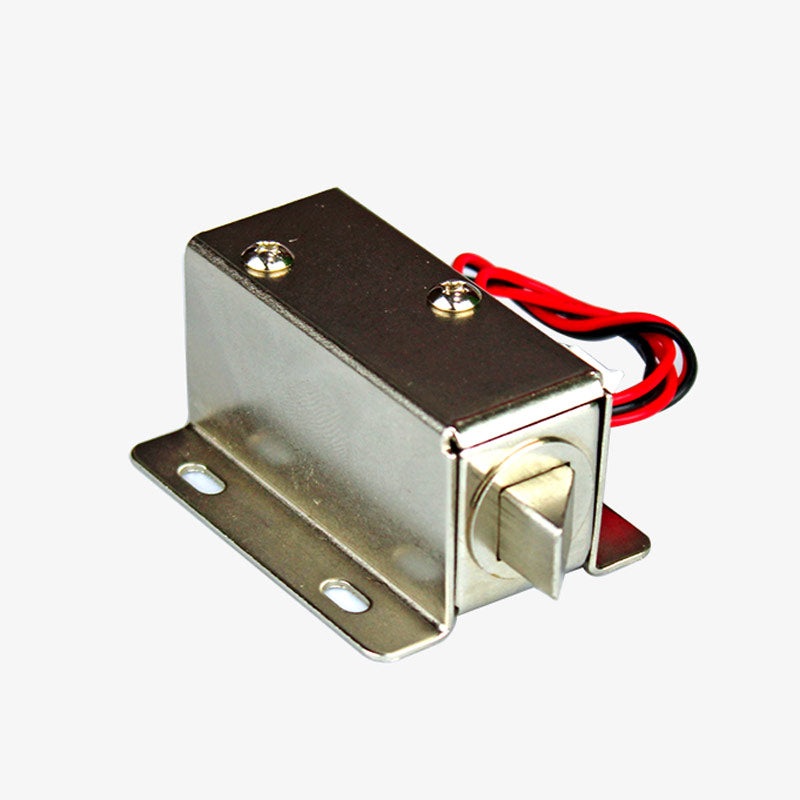

The 12V Minatare solenoid lock can be used in automation projects in which a lock has to be controlled electronically. The Solenoid lock is made of metal and can be triggeredusing a 12V power source, the current consumption of the lock is nearly 600mA.
Specification of 12V Solenoid Lock:
- Operating Voltage: 12V
- Current consumption: 600mA (continuous)
- Holding Force: 0.20kg
- Unlocking Time: 1 second (max)
- Dimensions(nearly): 30 x 23 x 15 mm (LxWxH)
Note: Dimensions is not accurate. There will be a slight difference.
The lock is commonly used in lockers, cabinets, and racks because of its small size. It is also used as security door locks to control door and grant access only to particular people.
