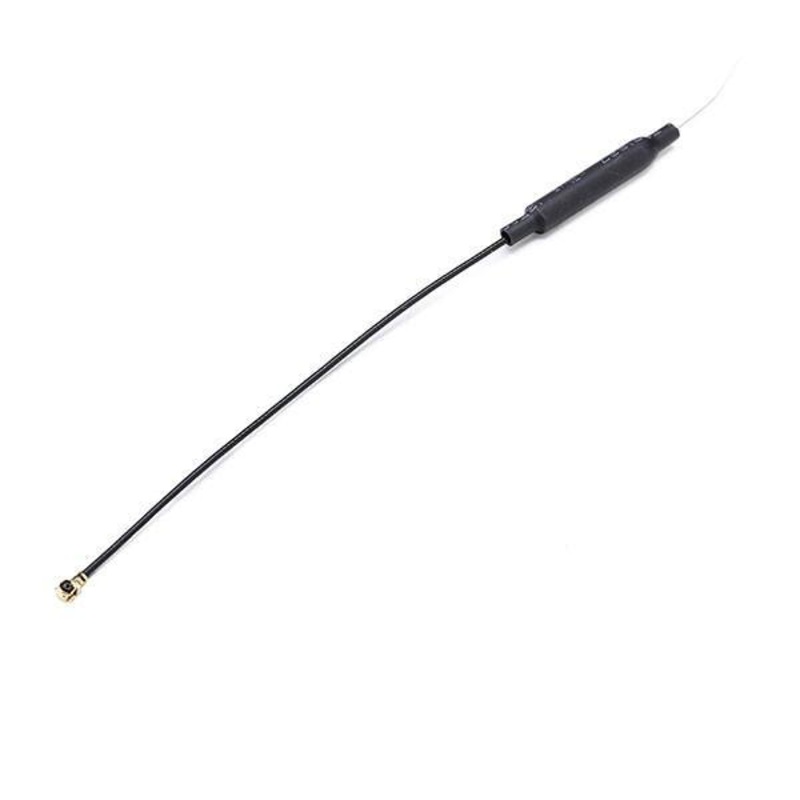

150mm 2.4G 2.5 dBi Antenna For FUTABA FRSKYJR FASST Receiver IPEX

Note:

The connector of these antennaswill NOT fit latest frsky receiver like x4r-sb which are using IPEX micro connector. See photo below:

Electrical Specifications

• Frequency Range(MHz): 2400-2500
• Gain(dBi): 2.5
• V.S.W.R. : 1.5
• Polarization: Vertical
• Non-Circularity(dB): 0.5
• Impedance(): 50
• Lightning Protection: Direct Ground
• Maximum Input Power(W): 50

Mechanical Specifications

• Connector Type:IPEX
• Radiating Element Material:Copper
• Radome Material:EVA
• Radome Color: Gray
• Dimension (mm):150mm(total length)
• Wight(Kg): 0.009/12
• Operating Temperature():-40~+70
• Reposition Temperature():-55~+80

Package included:

• 1x150mm 2.4G 2.5 dBi Antenna for FUTABA FRSKYJR FASST Receiver IPEX Connector
