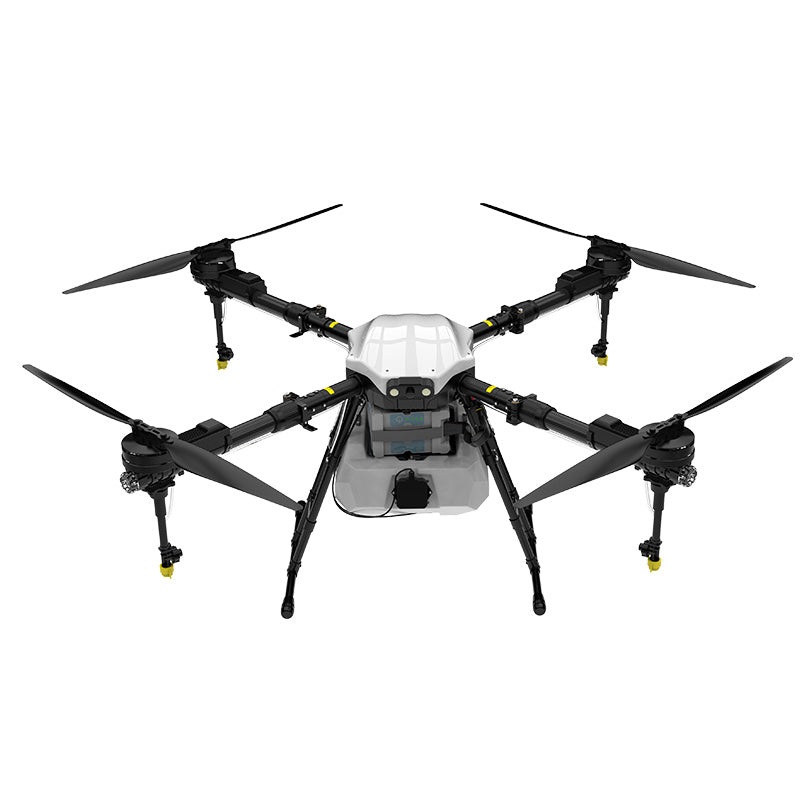

16L 4EV Agricultural Spraying Drone UAV Frame With Hobbywing X9 Power System

Parameters:
Outline dimension: 1100*1100*600mm
Wheelbase: 1600mm
Working speed: 4~5m/s
Spraying swath: 3-4m
Pressure nozzle number: 4 Pieces
Operating efficiency: 100 acres/hour
Pesticide container capacity: 16L Technical Parameters
Max Thrust (46V):23kgRecommended Battery:12-14S
Recommended Takeoff Weight:7-11kg
Total Weight
Powertrain Arm Tube 0uter Diameter: 40/45mm
Operating Temperature:-20-50
Ingress Protection:IPX6
MotorStator Size:9616
KV:110 rpm/V
Motor Size: 104Propeller:34*11inch
