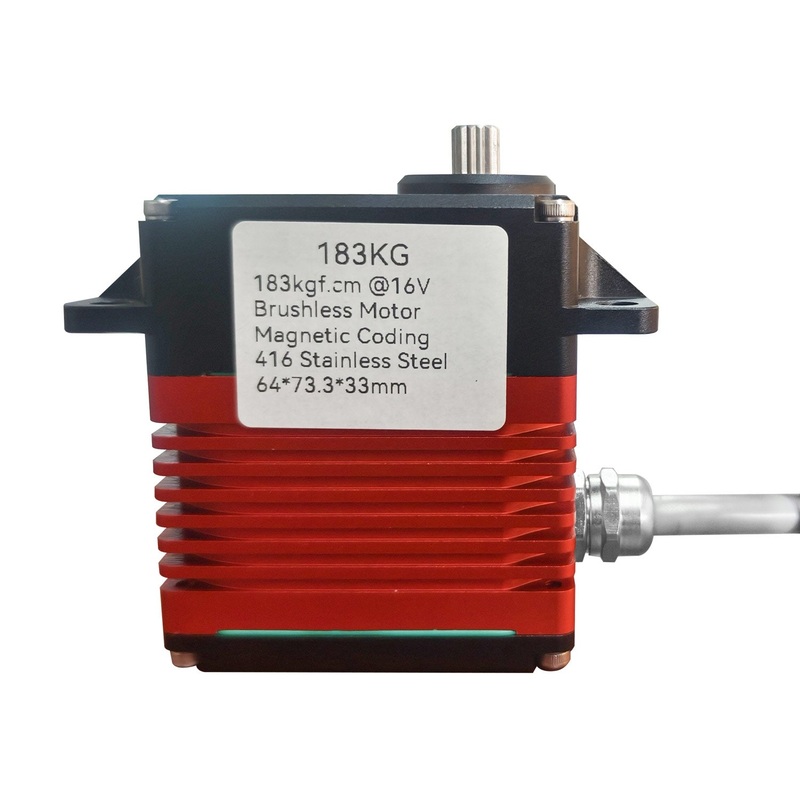

183KG High Torque Alu CNC alu alloy case 0~180 waterproof DIGITAL Servo

Specifications

Storage Temperature Range-30C~60C(-22F~+140F)
Case Dimensions 65*30*49mm (2.56inch*1.18inch*1.93inch)
Gear type Imported 416 stainless steel gear
Horn gear spline 15T-7.6MM
Case7075 aluminum alloy shell
Motor Aluminium CNC
ProgrammableYes
Command signalPWM
Neutral position 1500 sec
Amplifier type Digital Controller
Pulse Lengths 800~2200usec
Potentiometer (Japan) Magnetic Coding

Operating Temperature Range -30C~+60(-22F~+140F)
Weight 344g(12.13oz)Not including accessories
Bearing 2 Ball bearings
0utput Shaft Mechanical Angle 180
Horn type Meta
Connector wire JR500mm
waterproof IP56
Working Frequency 1520us/50-333Hz
Rotating direction CCW(when1000-2000sec)
Adjustable Angle 0~180

Dead band width 2 sec
Soft Start Programmable

Package Includes:

Quantity1 pc
