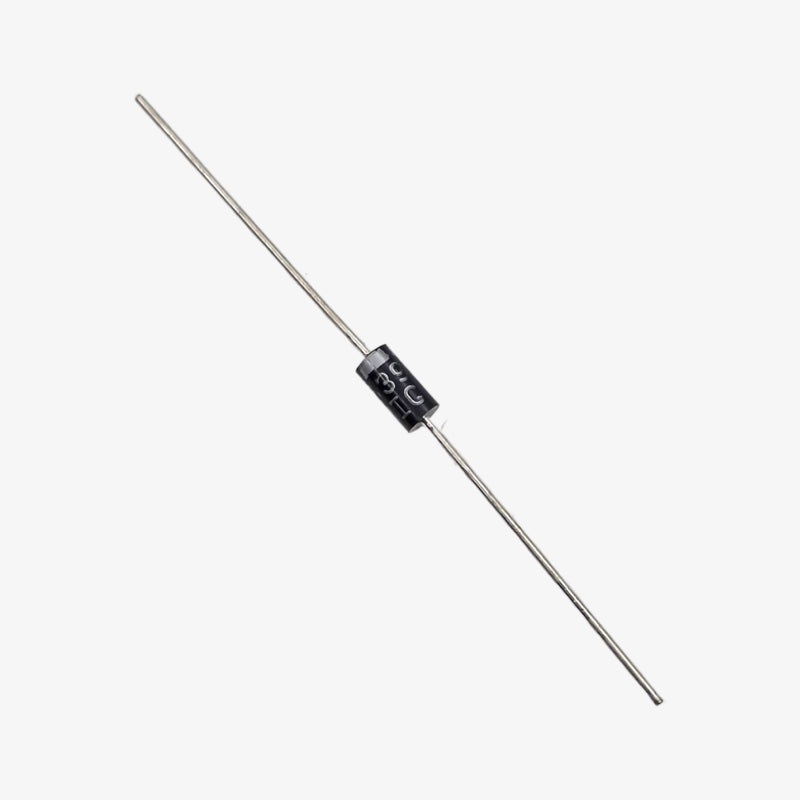

1N5399 General Purpose Silicon Rectifier Diode 1.5A

The 1N5399 General Purpose Silicon Rectifier Diode 1.5A is built for stable AC to DC rectification in standard power applications. Its molded structure ensures dependable operation across varied loads. Ideal for chargers, adapters, and low-frequency rectifier circuits.

CLICK HERE FOR DATASHEET

Features:

1. Offers strong surge endurance for handling temporary overload conditions
2. Maintains consistent efficiency with reduced reverse leakage losses
3. Designed to support high-voltage rectification in compact power circuits
4. Includes a robust DO-15 molded body that ensures reliable thermal stability

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V
• Forward Current Rating: 1.5 A
• Package Type: DO-15 (DO-204AC), axial leads
• Application Type: AC to DC conversion, protection circuits
• Mounting: Through-hole
• Performance Notes: Low leakage, high surge tolerance

Package Includes:

1 1N5399 General Purpose Silicon Rectifier Diode 1.5A
