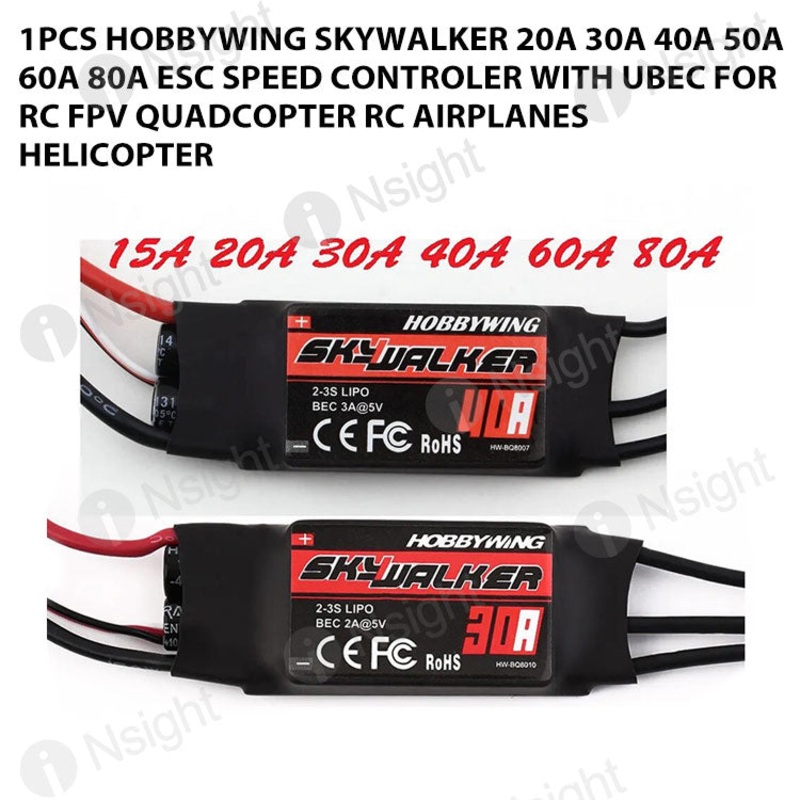

1pcs Hobbywing Skywalker 20A 30A 40A 50A 60A 80A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Helicopter

1pcs Hobbywing Skywalker 20A 30A 40A 50A 60A 80A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Helicopter

Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
Specially optimized software for excellent compatibility with disc-type motors.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

Specifications:

20A:Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm40A V2:

Model: Skywalker-40A

Continuous Current: 40A

Burst Current (>10s): 60A

BEC Mode: Linear

BEC Output: 5V 5A

Battery Cell: 3-4S (Lipo)

Net Weight: 35g

Dimension (L x W x H): 68 x 25 x 8mm

30A:

Constant Current: 30A
Peak Current:40A(10s)
Voltage: 2-3S lixx
BEC: Yes
BEC Output: 5V/2A
Color: black
Programmable:Yes
Size: 70*25*8mm (not including cable length)
Net Weight:38g

– COntinuous output: 50A
– Burst current: 60A@10S
– Power input: 2-4S Lixx/5-12S Nixx
– 5V/3A BEC output, switch mode
– Refresh rate: 50Hz-432Hz
– Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min
– Dimension: 68*25*12mm
– Weight: 43g

Packet content:

• 100% Brand New
• 1*Hobbywing ESC
