Specifications
- Frequency : 2.4Ghz
- Antenna : T-antenna (54*78mm, 0.6g)
- Chip : SX1280+ESP8285
- Power : 100mW (Measured around 120mW)
- Input voltage : 5V
- Antenna connector : IPEX1
- Weight : 0.7g (without antenna)
- Dimension : 10.4mm*18.4mm
- Default Firmware : SpeedyBee Nano 2.4GHz RX 3.3.1
- To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds
-
Light Indicator
- Double red blinking = binding
- Slow red blinking = powering up but unlinked, no packages received from the transmitter
- Solid red = receiver is connected, with signal received
- Fast red flashing = Wi-Fi is turned on, and updating via Wi-Fi is available
-

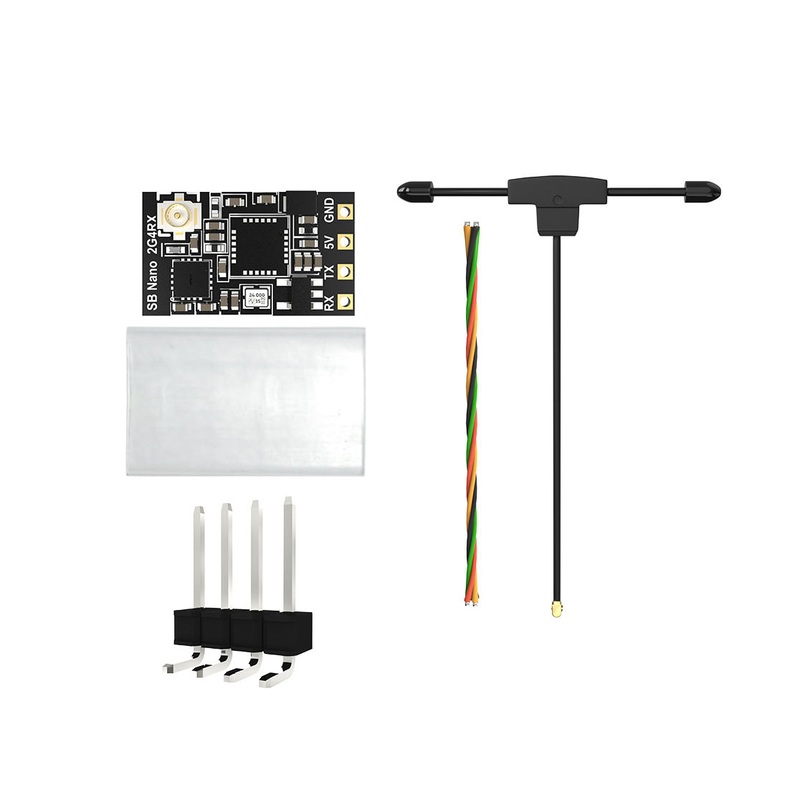

Package Contents
- 1x ELRS nano receiver
- 1x IPEX T antenna
- 1x 4pin cable
