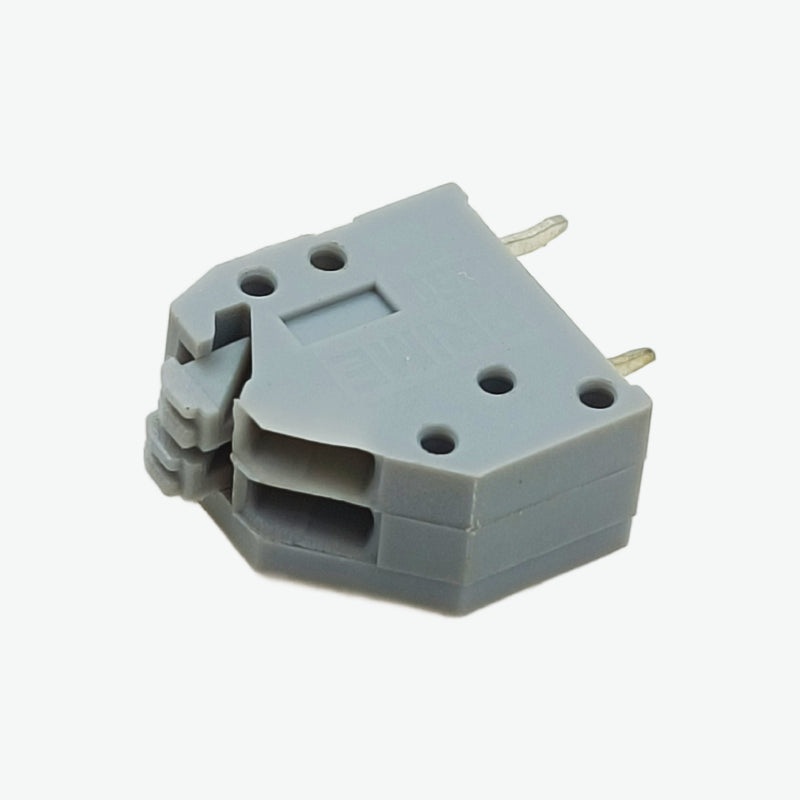

2 Way Push Type PCB Connector Terminal Block – 2.54mm Pitch

The 2 Way Push Type PCB Connector is a compact and reliable solution for secure wire-to-board connections. Featuring push-in terminals, it allows tool-free insertion and removal of solid or stranded wires, providing fast and maintenance-friendly assembly. Its high-quality engineering thermoplastic housing and copper alloy contacts ensure long-lasting performance, low voltage drop, and stable electrical conductivity, making it ideal for control boards, automation modules, and industrial electronics.

Features:

1. Dual-terminal push-in connector for quick, secure, and screwless wire connections
2. 2.54mm pitch suitable for compact, high-density PCB layouts
3. Recommended PCB hole diameter: 1.20mm for precise mounting
4. Engineering thermoplastic housing ensures durability and high insulation
5. Minimal voltage drop of 20mV for efficient power transmission
6. Supports wire sizes from 0.21.5mm
7. Copper alloy contacts with wire protector for reliable termination
8. Solder pin size: 0.40 0.80mm for easy PCB assembly
9. Compliant with IEC 60947-7-1 standard; dielectric strength >2.5KV

Specifications:

• Type: Push Type PCB Connector (Screwless)
• Number of Terminals: 2
• Rated Current: 2A
• Rated Voltage: 160V AC
• Test Class: IEC 60947-7-1
• Pitch: 2.54mm
• Wire Size: 0.21.5mm
• Wire Strip Size: 8.509.50mm
• Contact Material: Copper Alloy
• Wire Protector: Yes
• Solder Pin Size: 0.40 0.80mm
• Dielectric Strength: >2.5KV
• Voltage Drop: 20mV
• Housing Material: Engineering Thermoplastic

Package Includes:

1 2 Way Push Type PCB Connector – 2.54mm Pitch
