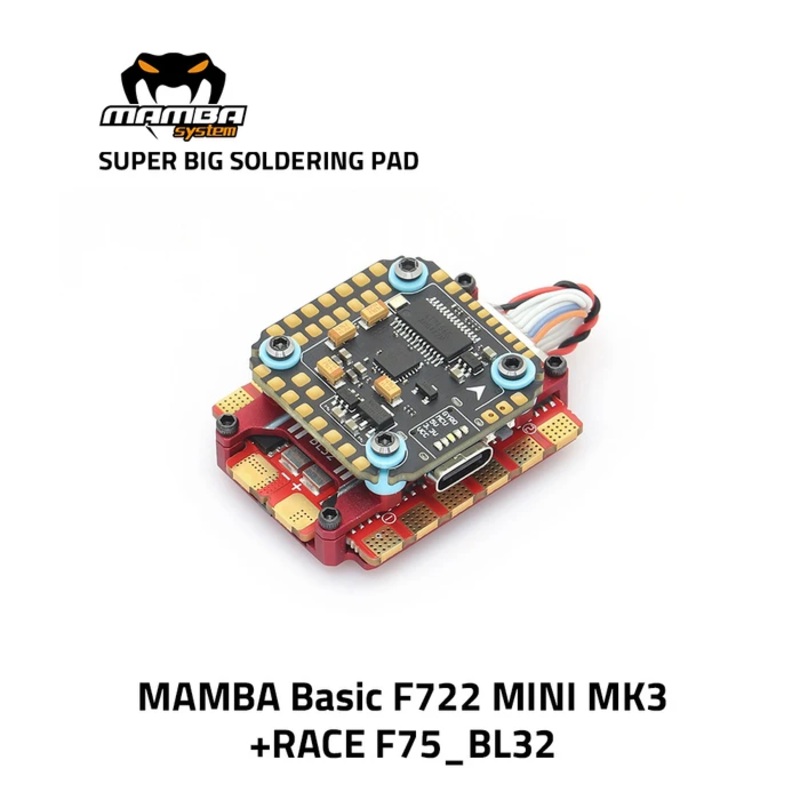

20x20mm MAMBA Stack RACE F722 Mini MK3 3-6S F7 Flight Controller OSD 75A Blheli_32 32bit Brushless ESC for RC Drone FPV Racing

Diatone MAMBA RACE F722 Mini MK3 75A 3-6S 32bit Flight Controller Stack

FC SPECIFICATIONS:

• MAMBA Basic F722MINI MK3
• MCU: 216MHzSTM32F722RET6
• GYRO: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16M Flash Memory
• Uarts: 6 Set
• ESC Soft:Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller:BF LED
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 2~6S Lipo (8.4~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 2.5A
• MOUNTING:20mm, M2

ESC SPECIFICATIONS

• MAMBA RACE F75_BL32
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT: 75A4
• BURST CURRENT:85A (10S)
• BEC: NO
• SOFT:Dshot300/600/1200
• TargetBLHeli_32
• MAMBA RACE F75_BL32
• TVS Protection: Yes
• MOUNTING: 20mm/M3/M2

PACKAGE INCLUDES:

• High-Frequency 470uF/35V 1
• 8pin sh1.0 2
• 16AWG 60mm 2
• AMASS Original XT60
