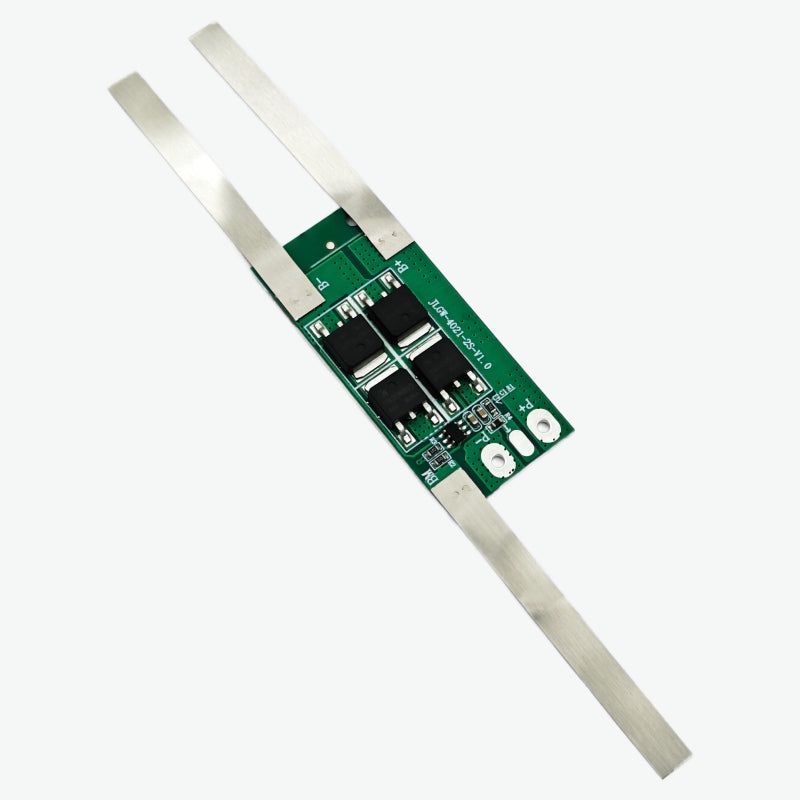

The2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePO cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePO battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePO chemistry.
Features of 2S 10A LiFePO Battery Protection BMS Module:
- Designed for 2S (6.4V nominal) LiFePO battery packs
- Continuous discharge current of up to 10A
- Overcharge and over-discharge protection tailored for LiFePO chemistry
- Short circuit and overcurrent protection
- Nickel strips provided for easy battery assembly
- Lightweight and compact for embedded power systems
Specifications of 2S 10A LiFePO Battery Protection BMS Module:
- Battery Type: LiFePO (Lithium Iron Phosphate)
- Configuration: 2S (6.4V nominal)
- Continuous Discharge Current: 10A
- Charging Voltage: 7.3V
- Overcharge Detection Voltage: ~3.65V 0.05V
- Over-discharge Detection Voltage: ~2.0V 0.1V
- Short Circuit Protection: Yes
- Operating Temperature: –20C to +60C
Package Includes:
1 2S 10A LiFePO BMS Module
