30A Brushless ESC BLHeli_S Firmware Speed controller for Multicopters Drones MT30A-OPTO-BK1/BK2

BLHeli_Sfirmware is the next generation code, following the base BLHeli code. BLHeli_Sis designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation. All codes use damped light mode.

Main features:

1. Hardware PWM smoother and more responsive motor response;
2. Always use damped light (Regenerative Breaking) for better multicopter control;
3. Code supports sync loss prevention tuneable parameters to make your ESC work well in the most demanding applications (not just FPV racing);
4. High resolution throttle steps;
5. Supports Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), Multishot (5-25us) protocols;
6. Automatically detects input signal protocol on ESC power up;
7. Beacon Function your ESC will start beeping after a set time of zero throttle to help you find your quadcopter.

Specifications:

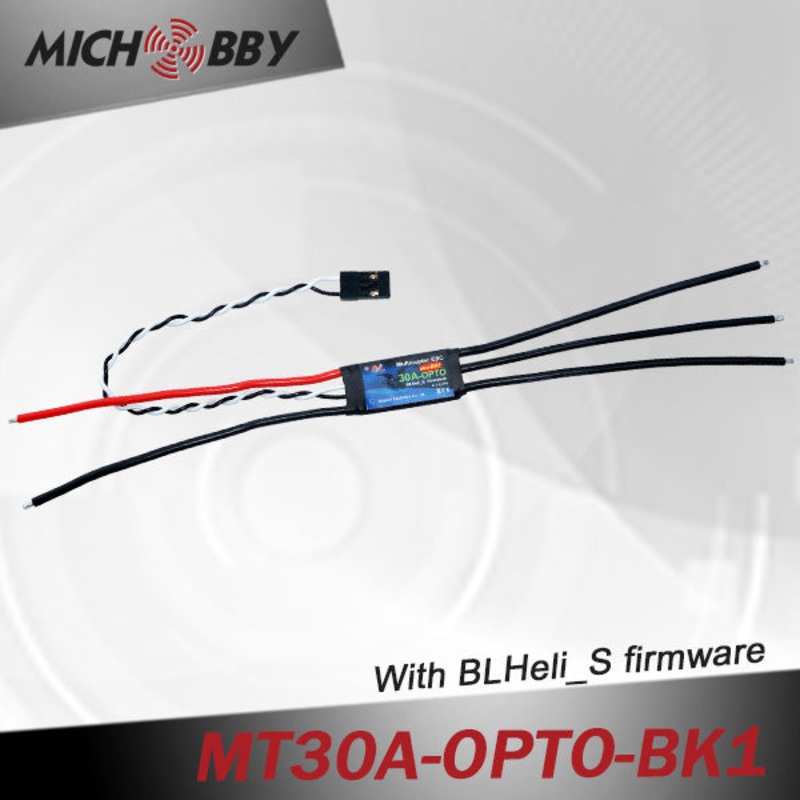

Model NO.: MT30A-OPTO-BK1withBB1 MCU

Firmware………………………………….. BLHeli_S firmware

Cont.Current …………………………….. 30A

Burst Current …………………………….. 35 A

BEC………………………………………….. None

Lipo…………………………………………… 2-4cells

Net Weight …………………………………. 9g

Size……………………………………………. 29*15mm

Model NO.:MT30A-OPTO-BK2 withBB2MCU

Firmware………………………………….. BLHeli_S firmware

Cont.Current ……………………………..30A

Burst Current …………………………….. 35 A

BEC………………………………………….. None

Lipo…………………………………………… 2-6cells

Net Weight …………………………………. 15g

Size…………………………………………….33*20mm
