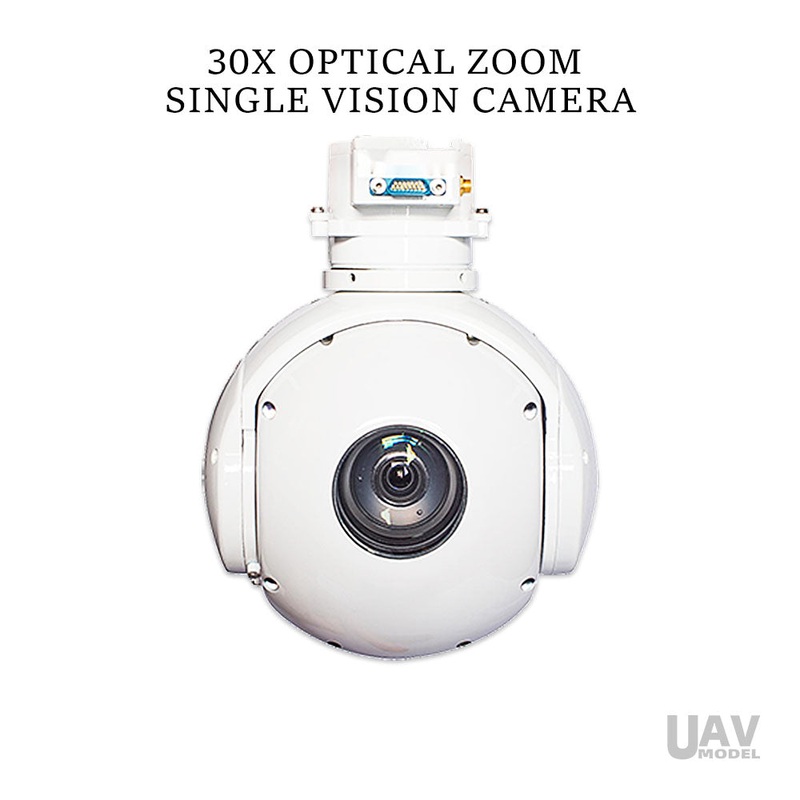

TS01 electro-optical pod has biax gyrostabilized platform installed with electric conduction link to realize 360 continuous rotation, and has 30x high-definition visible light camera.It is mainly applied to airborne earth imaging detection, identification and tracking and used to satisfy the aerial mapping, monitoring, survey and other requirements.

The product with compact structure, light weight and mature and reliable performance may be assembled to various types of unmanned aerial vehicles and other aircraft carriers, and be assembled to the vessel and vehicle carriers to satisfy the sea and air use demands.

TS-01T

Technical Specification

System Specification

Stabilization: 200 rad(1) (2 / 1Hz, 1 / 2Hz swing

Weight: 780 g

Size: 120mm 183mm

Environmental protection:IP64

Operating Temperature:-20~60

Rotation Limits:

Azimuth axis: n 360 continuous rotation

Pitch Axis: -110 ~+ 10 (0 horizontal, positive upward)

Horizontal roller: -40 ~+ 40

Slew Rate: 50 / s

Power:15W typical/ 30W peak

Voltage:10 V~ 14 V

Video out: Digital H.264 encoded video

Control interfaceRS422

Onboard Image Processor Specification

Object Tracking Yes

Scene Steering: yes

Software Stabilization: Yes

Software Roll Correction Yes

Video Output: HD-SDI,1080p,30Hz

H264.encoding: Yes

Geo-Location Feature: Yes

Moving Map Software: Yes

EO Sensor Specification

Field of View63.7 ~2.3

Resolution:1920×1080

Optical Zoom30x

Digital Zoom: 2x

TS-01AT

System Specification

Stabilization: 200 rad(1) (2 / 1Hz, 1 / 2Hz swing

Weight: 860g

Size: 120mm 184mm

Environmental protection:IP64

Operating Temperature:-20~60

Rotation Limits:

Azimuth axis: n 360 continuous rotation

Pitch Axis: -110 ~+ 10 (0 horizontal, positive upward)

Horizontal roller: -40 ~+ 40

Slew Rate: 50 / s

Power:15W typical/ 30W peak

Voltage:10 V~ 14 V

Video out: Digital H.264 encoded video

Control interfaceRS422

Onboard Image Processor Specification

Object Tracking Yes

Scene Steering: yes

Software Stabilization: Yes

Software Roll Correction Yes

Video Output: HD-SDI,1080p,30Hz

H264.encoding: Yes

Geo-Location Feature: Yes

Moving Map Software: Yes

EO Sensor Specification

Field of View63.7 ~2.3

Resolution:1920×1080

Optical Zoom30x

Digital Zoom: 2x

Laser Rangefinder Specification

Ranging accuracy: 3m

Laser distance distance: 3 ~ 1,000 m

TS-01BT

System Specification

Stabilization: 200 rad(1) (2 / 1Hz, 1 / 2Hz swing

Weight: 780g

Size: 120mm 184mm

Environmental protection:IP64

Operating Temperature:-20~60

Rotation Limits:

Azimuth axis: n 360 continuous rotation

Pitch Axis: -110 ~+ 10 (0 horizontal, positive upward)

Horizontal roller: -40 ~+ 40

Slew Rate: 50 / s

Power:15W typical/ 30W peak

Voltage:10 V~ 14 V

Video out: Digital H.264 encoded video

Control interfaceRS422

Onboard Image Processor Specification

Object Tracking Yes

Scene Steering: yes

Software Stabilization: Yes

Software Roll Correction Yes

Video Output: HD-SDI,1080p,30Hz

H264.encoding: Yes

Geo-Location Feature: Yes

Moving Map Software: Yes

Laser Rangefinder Specification

Ranging accuracy: 3m

Laser distance distance: 3 ~ 1,000 m

IR Sensor Specification

Type: LWIR uncooled

Field of View:17.4 14

Resolution:640×512

Frame Rate:30fps

Focus length: 25mm /F1.0

Sensitivity:50mK
