SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 68 x 25 x 8mm/2.68 x 0.98 x 0.35in

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: 40A brushless ESC

Material: Composite Material

Four-wheel Drive Attributes: ESC

For Vehicle Type: Airplanes

Brand Name: QYWWRC

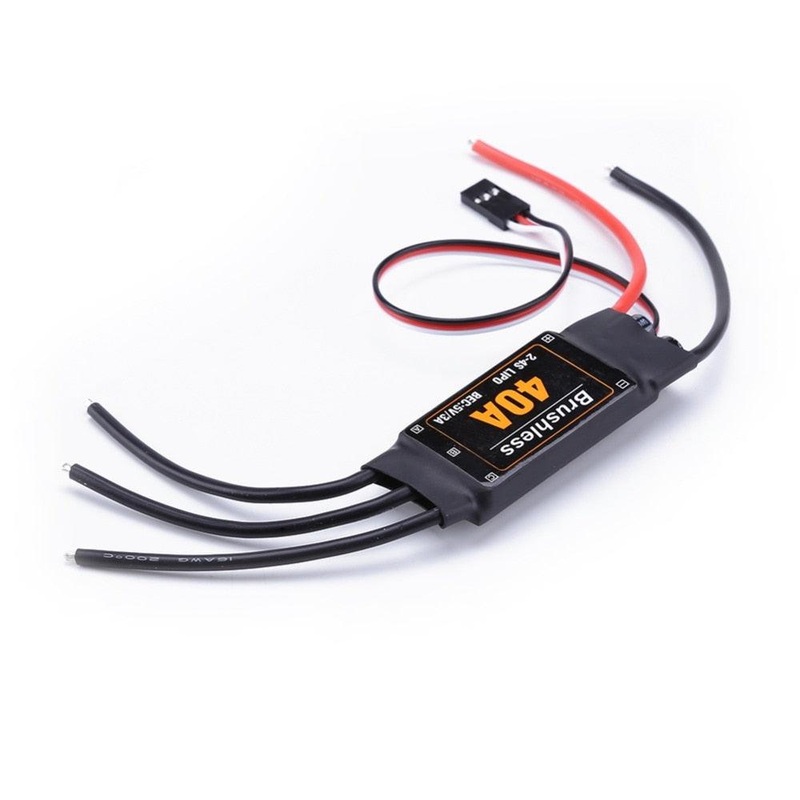

1pcs 40A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Helicopter100% Brand NewSpecial core program for multi-rotor controllers meets various functional requirements against multi-rotors.Specially optimized software for excellent compatibility with disc-type motors.The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.Specifications:Model: 40AContinuous Current: 40ABurst Current (>10s): 55ABEC Mode: LinearBEC output: 5V@3A (linear regulator mode – linear mode)BEC Output Capability: 4 Servos (2-4S Lipo)Battery Cell: 2-4S (Lipo)Maximum speed: 210,000 rpm/min for 2-pole motor, 7000 rpm/min for 6-pole motor ,35,000 rpm/min for 12-pole motorNet Weight: 30gDimension (L x W x H): 68 x 25 x 8mm/2.68 x 0.98 x 0.35inPacket content:1*40A ESC
