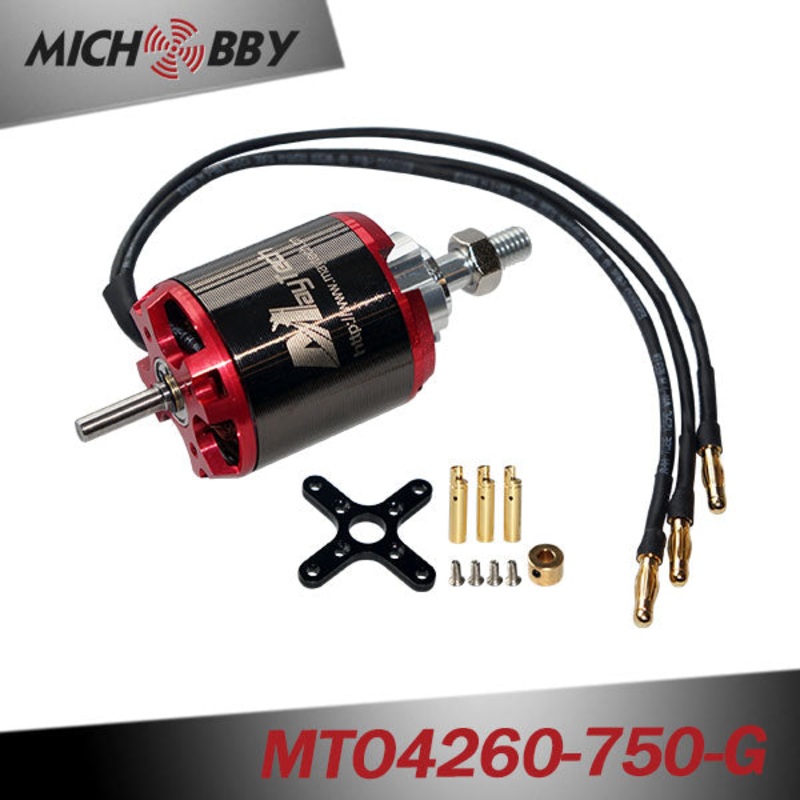

4260 600KV/750KV/850KV Brushless Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics
|
Model No |
KV | Shaft (mm) | Max. Current | Input Volt. | Net Weight (g) |
Stator Size | Motor Size | Thurst (g) | WATT. |
| MTO4260 -600-G | 600 | 5.0 | 56A | 4-6S Li-Po | 280 |
35.0X 42.0 |
42.0X 59.5 |
2800 | 520W |
| MTO4260 -750-G | 750 | 5.0 | 65A | 4-6S Li-Po | 280 |
35.0X 42.0 |
42.0X 59.5 |
4700 | 1150W |
| MTO4260 -850-G | 850 | 5.0 | 75A | 4-6S Li-Po | 280 |
35.0X 42.0 |
42.0X 59.5 |
3800 | 907W |
190KV is in stock now. Limited stock quantity, recommend to confirm order earlier to get order sent earlier.
And other KV 600KV/750KV/850KV needs to need to customized, production time is about 30days after payment.
Motor cover color radomly (red or orange). For more details or customized motors, please contact [email protected] .
Test datasheet:
Features:
- The up and bottom capsare made of aluminium alloy.
- The motor caseis made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing:
