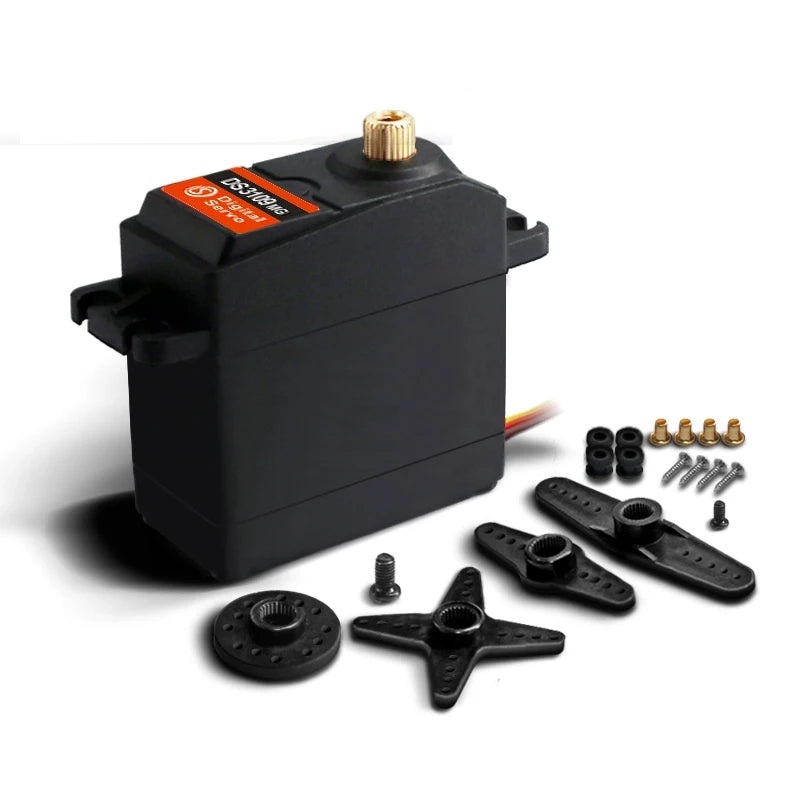

DSServo DS3109 DS3115 DS3120 9KG 15KG 20KG Servo SPECIFICATIONS
Brand Name: Dsservo
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Model Number: DS3115 DS3120 DS3109
|
Dsservo DS3109 DS3115 cm@Sv [email protected] 17kg . cm @6. 8v 25kg. m @ 6.8′ @Sv 0.20sec/60′ @Speed 0.1 sec/608 608.8v 0.14sec/608 6.8v/0.17sec/608. 6.8 Waterproof .
|
Brand:Dsservo
Packing List:
4x digital servo
4x accessory bag
Apply Environmental Conditon:
1.Storage Temperature Range:-30C~80C
2.OperatingTemperature Range:-25C~70C
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g2g
3. Limit angle: 360
4.Bearing: 2BB
6.Case : Alloy shell
7.Connector wire: 320mm5mm
Electrical Specification:
1.Working voltage range: 4.8 – 7.2V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 5002500usec
5.Neutral position: 1500usec
6.Running degree: 1803(PWM5002500usec) or 2703(PWM5002500usec)
7.Dead band width: 3usec
8.Rotating direction Counterclockwise: (when 10002000usec)
|
|
|
|
|
|
|
If you need to buy a small number of servos for test, please looking for 1X links in the store!
