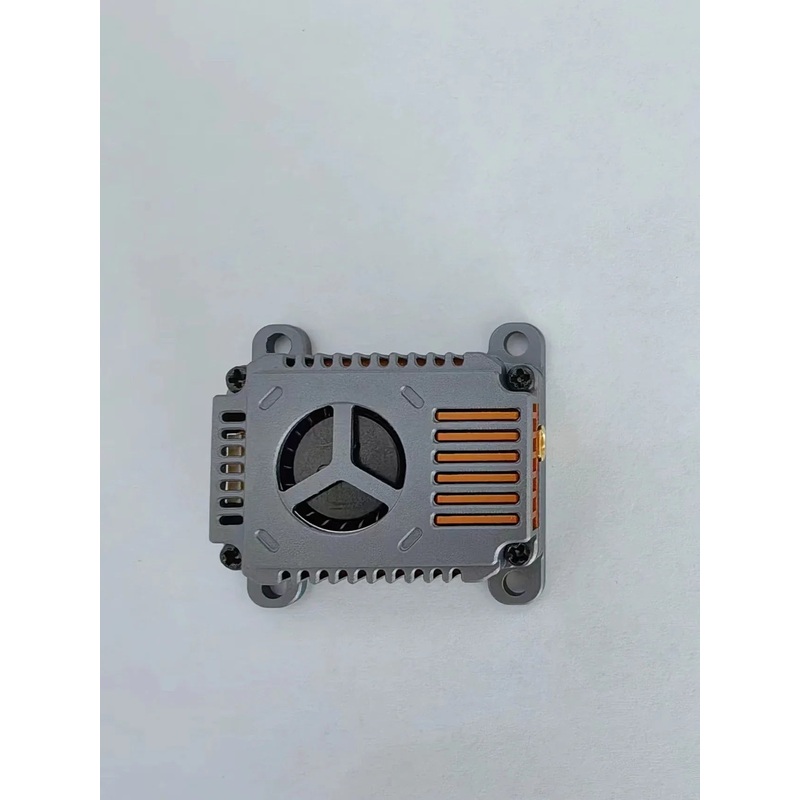

5.8G Long Range Transmitter VTX FPV

25mW/1000mW/2000mW/3000mW Switchable Transmitter for FPV

drones

Specifications:

1. 48CH5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5945MHz);

2. Max power: 3W (25mW/1000mW/2000mW/3000mWadjustable);

3. Input voltage: DC 7V-36V. supporting 2-8S battery input

4. Antenna connector: MMCX

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy heat sink&fan

7. Hole spacing: 30.5mm*30.5mm /3.15mm

8. Dimension: 37.7mm*36.1mm*11mm

9. Weight: 16g

IV Function introduction: 1. Channel indicator: Red LED 2. Band indicator: Blue LED 3. Power level indicator: Green LED 4.Band and channel changer button 5.

The green LED serves as an RF power level indicator. with its status displayed through flashing patterns: one flash for 25mW. two flashes for 1000mW. three flashes for 2000mW. and four flashes for 3000mW. When the button is held for more than three seconds. the transmitter will enter ‘power-off’ mode. and the green LED will remain continuously illuminated.

The transmitter features a built-in temperature protection function. When the temperature exceeds 100C. the RF power level will automatically decrease by one step. If the temperature continues to rise above 100C. the power output will continue to drop further.

Note: The 5.8G VTX transmitter has the following color-coded connections:* 7-36V (power input): Ground (GND) Video TRC (SVOut) Ground* Color indicators: Red. Black. Yellow. White. and Red/Black for VIII notice.

The module features air convection for cooling purposes. If the overheating protection is activated. the power emission will automatically decrease.

Packaging contents:* 1 x 5.8GHz VTX module* 2 x MMCX interface antennas with connection cables* 3 x 6P connectors for connecting multiple devices
