These are professional FPV long-distance flight kits based on the MyFlyDreams system. Each kit’s components are carefully selected and pre-tested, ensuring stable signal, long transmission distance, and a flight range of up to 50 kilometers, meeting long-distance flight requirements and compatible with fixed-wing and other FPV aircraft.

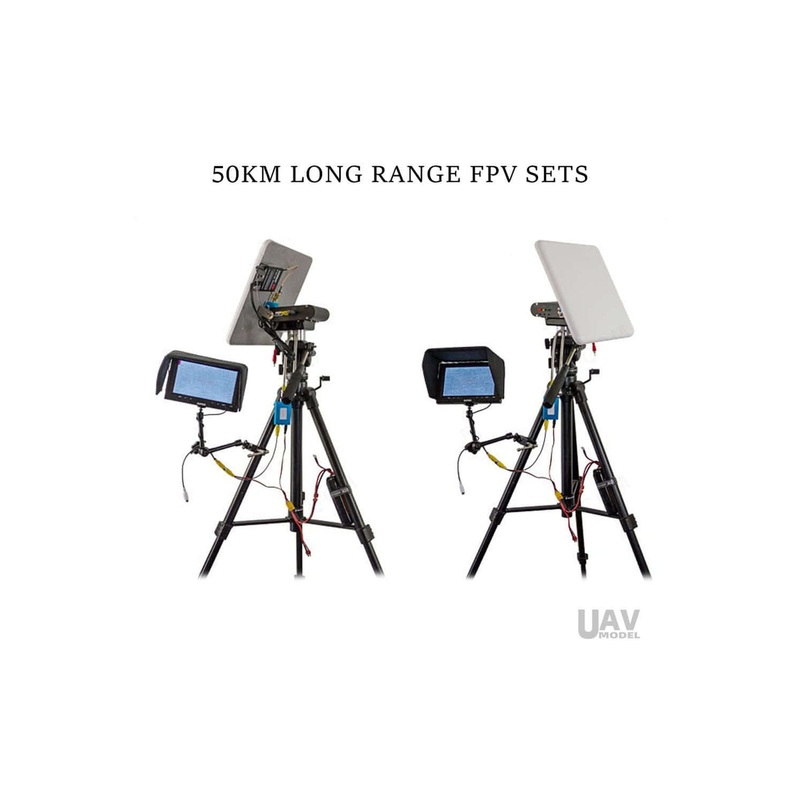

MyFlyDream 50km LongRange Flight
These are professional FPV sets for long range flight based on MyFlyDreams system (see the above video). The items in each combo are specially selected and pre-tested for the fixed wings that with a wingspan over 1500mm. As per MyFlyDreams internal test, the flight range can be up to 50km. However, the range drone may be different under different circumstances.
Our engineers can help with the soldering and wiring work, including solder the current sensor and ESC.Totally free!!!
If theres any special requirements, like change the flight controller to Panda Autopilot w/ ground station, or change the camera to others, please feel free to contact our customer service at [email protected]. One of our staff will confirm with you whether the change is doable or not.
Plug and play. We’ve added the voltage regulator module and XT60 plug, modified the transmitter and camera with servo plug.FPV Long Range Drone parts are pre-tested to ensure that they are well matched and performed.Note: Due to our engineers need to do the soldering, wiring work and test the equipment before send out. It might take 2 days after you place the order.Please make sure you understand and accept this before purchasing, thank you!
Combo 1 package
Combo 2 package
Combo 3 package
Combo 1 Package Includes:
RunCam Swift 2 1/3 CCD IR Blocked Micro Camera x 1
1.2G 5.8G Micro BEC w/CNC Enclosure 5V x 1
AOMWAY 5.8G 15CH 1000mw TX x 1
5.8GHz 48CH RaceBand Diversity Receiver x 1
XT60 Male To Two DC 5.5mm Plug Connecting Wire x 1
Super 7 inch TFT Color LCD Snowflakes Screen x 1
MFD MyFlyDream with 50A current sensor x 1 ( or you can choose 100A current sensor, need to tell our customer serive staff )
and other accessories
Combo 2 Package includes:
RunCam Swift 2 1/3 CCD IR Blocked Micro Camera x 1
1.2G 5.8G Micro BEC w/CNC Enclosure 5V x 1
AOMWAY 5.8G 15CH 1000mw TX x 1
Sharp Vision 7 Inch LED Monitor With Built-in 5.8G Dual Receiver and DVR x 1
Aomway 5.8G 5DBi High Gain Omni Antenna x 1
Aomway 5.8GHz 14dBi High Gain Mini Panel Antenna x 1
RP-SMA Male to SMA Female Adapter x 1
MFD MyFlyDream with 50A current sensor x 1 ( or you can choose 100A current sensor ,need to tell our customer serive staff )
Rlink V2 433MHz 16CH Long Range Combo x 1
and other accessories
Combo 3 package includes:
MYFLYDREAM AAT Automatic Antenna Tracker 6 channels x1 (or you can choose MYFLYDREAM AAT Automatic Antenna Tracker 12 channels ,need to tell our customer serive staff, fill 25USD price difference. Click here for 25USD price difference.)
FPV 1.2G 5.8G Micro BEC w/ CNC Enclosure 12V x 2
Orignal Amass XT60 plug x1
3M Super Strong Double Sided Adhesive x1
FreeFlight Velcro Battery Strap x2
FPVMODEL Velcro Battery Strap x2
sunshade sun hood for 7 inch x1
Rlink V2 433MHz 16CH Long Range Combo x 1
5.8GHz 48CH RaceBand Diversity Receiver x 1
RunCam Swift 2 1/3 CCD IR Blocked Micro Camera x 1
1.2G 5.8G Micro BEC w/CNC Enclosure 5V x 1
AOMWAY 5.8G 15CH 1000mw TX x 1
XT60 Male To Two DC 5.5mm Plug Connecting Wire x 1
Super 7 inch TFT Color LCD Snowflakes Screen x 1
11 inch Articulating Friction Magic Arm + Super Clamp x1
MFD MyFlyDream Autopilot OSD Flight Stablizer with 50A current sensor x 1 ( or you can choose 100A current sensor ,need to tell our customer serive staff )
MFD 5.8G 23db High Gain Flat Antenna Panel x1
and other accessories
Bundle 4
Total List:
1. Snail Avatar HD Kit V2 Set (Sky-based + VRX + Camera) *1
2. Directional Antenna (Ground-based) *2
3. Airborne Antenna (Sky-based) *2
4. 7-inch Screen *1
5. SMA Feeder Cable *2
6. Tripod *1
7. 0.5m HDMI Cable *1
Accessory Specifications: Snail Avatar HD V2 with built-in 32GB storage, built-in gyroscope, and dual antennas for image transmission.
Sky end:
| Specification | Details |
|---|---|
| Camera | Avatar HD V2 Camera |
| Image Sensor | 1/3.2 inch 4Mp 4:3 Sensor |
| Resolution | 1080P/60fps; 720P/100fps; 720P/60fps; 1080P/100fps compatible; 1080P/120fps compatible |
| Aspect Ratio | 16/9; Native 4/3 |
| Lens | 2.1mm |
| Field of View (FOV) | 160 |
| Aperture | F2.0 |
| Shutter | Rolling Shutter |
| Minimum Illuminance | 0.001Lux |
| Weight | 7.2 grams |
| Dimensions | 191922mm |
| Coaxial Cable | 140mm |
| Specification | Details |
|---|---|
| Model | Avatar V2 Module (Dual Antenna) |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power | (EIRP) FCC: <30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.04 (Power Input) JST0.86 (USB) |
| Mounting Holes | 25.525.5mm; 2020mm |
| Dimensions | 33.533.510.5mm |
| Storage | 32G |
| Recording | 1080P/720P |
| Weight | 15.4g |
| Operating Temperature | -20-40 |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC Systems | Betaflight; Inav; Fettec; ArduPilot; Kiss |
| OSD | Canvas Mode |
| Average Latency | 22ms |
| Antenna | 2 (IPEX) |
Specification
ModelAvatarFPVVRX
CommunicationFrequency5.725-5.850GHz
TransmitterPower(EIRP)FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/OlnterfaceHDMl,microSDcardslot,DC5.5*2.1mm
HDMlOutput1080p60fps,720p100fps,720p60fps
PowerInput 7-21V(2S-5S)
SDCardSupport256G
SystemAvatar HDSystem
Model Red Bird
Polarization LHCP
Bandwidth5.6GHz-6.0GHZ
AverageGain1.9dBi
RadiationEfficiency97%
VSWR1.3
Cross-Polar Rejection-15to-30dB
ConnectorRP-SMA
DimensionH24.8mm*R15.3mm
Weight4.2g
Packing List
AvatarFPVVRX1
RedBirdAntennax2
HDMI Cable x1
2in1DCPowerCablex1
Note:The tripod is not included in the combos. Please feel free to contact our sales if you have any questions regarding the combos.
