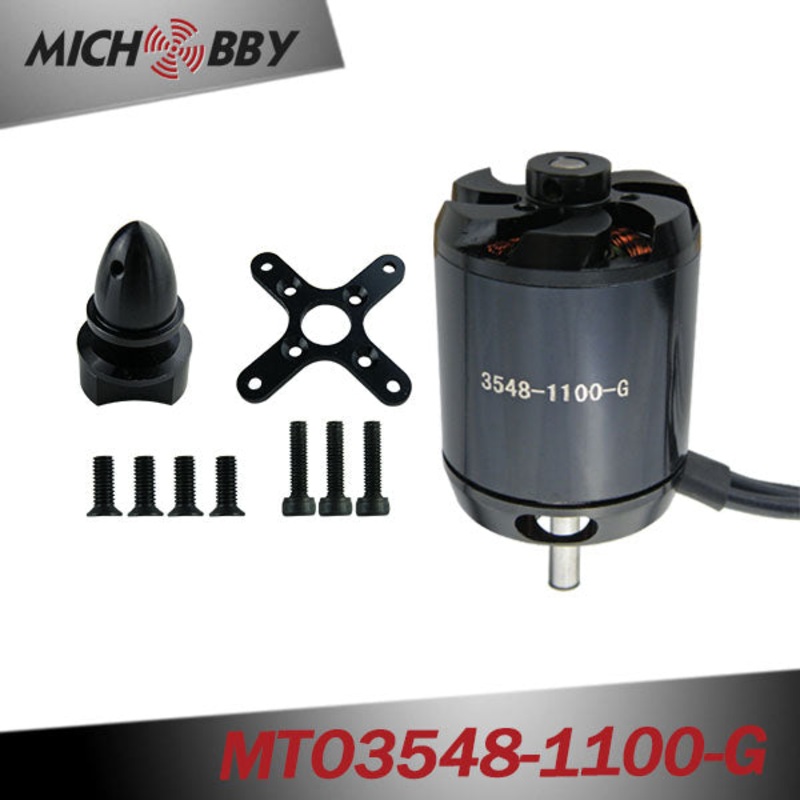

50pcs 3548 710KV/790KV/900KV/1100KV/1300KV Brushless Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics
| Model No | MTO3548-790-G | MTO3548-900-G | MTO3548-1100-G |
| KV | 790 | 900 | 1100 |
| Shaft (mm) | 5.0 | 5.0 | 5.0 |
| Max. Current | 39.6A | 42.5A | 50.3A |
| Input Volt. | 3-5S Li-Po | 3-5S Li-Po | 3-5S Li-Po |
| Net Weight(g) | 156 | 155 | 157 |
| Stator Size | 28.0X26 | 28.0X26 | 28.0X26 |
| Motor Size | 35×48.4 | 35×48.4 | 35×48.4 |
| Thurst (g) | 1650 | 1780 | 2150 |
| WATT. | 717W | 770W | 911W |
MOQ is 50pcs/order for this motor. Motor logo can be customized. You can order different KVs (For example, order of 25pcs 790KV + 25pcs 1100KV is ok).
For more details or customized motors, please contact [email protected] .
Test Datasheet:
Features:
- The up and bottom capsare made of aluminium alloy.
- The motor caseis made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing:
