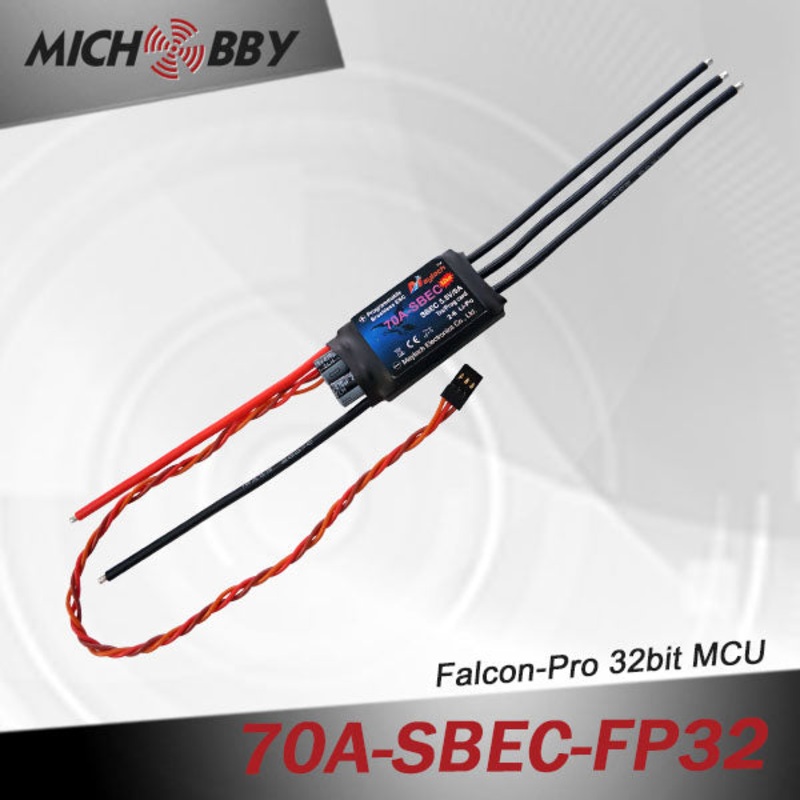

70A 6S FP Brushless ESC 32bit Speed Controller for RC Airplanes MT70ASBECFP32

70A 6S FP Brushless ESC 32bit Speed Controller for RC Airplanes MT70ASBECFP32

Model NO.:MT70A-SBEC-FP32

Firmware………………………………….. Maytech FP32bit firmware

Cont.Current …………………………….. 70A

Burst Current …………………………….. 85A

BEC………………………………………….. 5.5V/5A

Lipo…………………………………………… 2-6 cells

Net Weight …………………………………. 60g

Size……………………………………………. 50*31mm

Falcon-Pro 32bit controllers are specially used for RC airplanes. 32bit mcu are used, enable the controllers have faster and more smooth throttle response than standard controllers.

Product Features:

1. 32 bit ARM MCU, small size, light weight and rapid running speed.
2. High resolution, smooth and responsive throttle linear. Throttle signal loss protect implemented.
3. Synchronous rectification, regenerative braking, more energy-efficient compared with the other regular ESCs.
4. Automatically detect input signal. Throttle is available for setting to compatible with different controllers.
5. Good compatibility to motors, it can work well for most motors in the market.
6. Easy to program with prog-card, specially designed for fixed wing, complete independent intellectual property rights with software and can keep on upgrading.

FP32 Series ESCs Specification:

1. Support 6A-160A, 2-8S (Please check ESC sticker to verify the specified cells and power,more items to be added)
2. PWM output frequency range is 8-24KHz. Different PWM frequency can be set byprogramming card.
3. Regular throttle range is: 900us~2400us
4. Max RPM: 300,000 rolls (2poles), 100,000 rolls (6poles), 500,000 rolls (12poles).
5. Customized settings can be done with prog-card and PC software.

Progcard for programming FP32bit ESCs:
