Description:

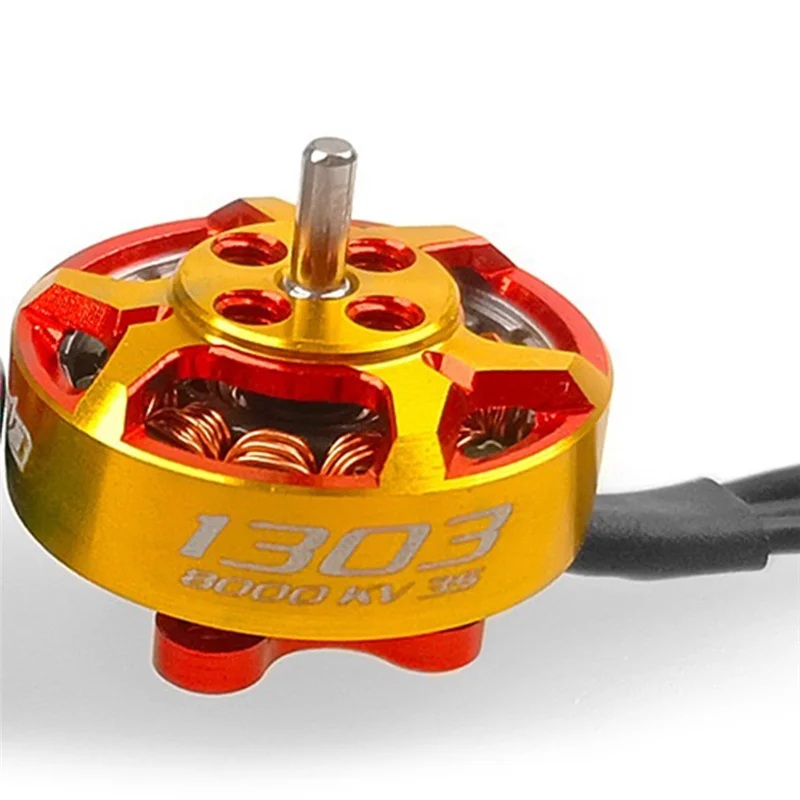

The A19Q-V3 1303 Plus Brushless Motor is engineered for high-performance 2-inch FPV racing drones and cinewhoops. Featuring a lightweight yet rugged build. this motor delivers smooth throttle response. efficient power. and durable performance. making it ideal for both cinematic flights and high-speed freestyle.
Available in 6000KV. 8000KV. and 11500KV configurations. this motor supports 1S to 4S LiPo setups. allowing pilots to choose the perfect balance of thrust and efficiency. Constructed with 7075 aluminum housing. N52H magnets. and a 1.5mm shaft. the motor maintains stability and reliability under demanding conditions.
Key Features:
-
Optimized for 2-inch FPV drones and cinewhoops
-
KV options: 6000KV / 8000KV / 11500KV
-
Dual-color anodized finish (Gold & Orange)
-
Precision 12N14P configuration for smooth output
-
1.5mm shaft diameter for durable connection
-
High-efficiency winding. >85% in working range
-
Perfect for freestyle. cinematic shots. or compact racers
Technical Specifications:
| Parameter | 6000KV | 8000KV | 11500KV |
|---|---|---|---|
| Configuration | 12N14P | 12N14P | 12N14P |
| Stator Diameter | 13mm | 13mm | 13mm |
| Stator Length | 3.2mm | 3.2mm | 3.2mm |
| Shaft Diameter | 1.5mm | 1.5mm | 1.5mm |
| Idle Current @5V (A) | 0.7 | 0.8 | 1.2 |
| Input Voltage (Lipo) | 24S | 23S | 12S |
| Max Continuous Power (3S) | 250W | 250W | 223W |
| Max Current (3S) | 16.9A | 22.5A | 30.1A |
| Internal Resistance | 166m | 145m | 105m |
| Max Efficiency Current | 25A >85% | 25A >85% | 37A >85% |
| Weight (Without Cable) | ~5.6g | ~5.6g | ~5.6g |
| Mounting Hole Pattern | 99mm | 99mm | 99mm |
Package Includes:
-
1 A19Q-V3 1303 Plus Brushless Motor
-
1 Screw Set
Note: Product color and printed markings may vary slightly by batch. This does not affect performance or compatibility. Minor dimensional deviations (13mm) may occur due to manual measurement.
|
GTS V3 1303plus-6000KV motor specs: KV 6000. 12N14P configuration. 13mm stator diameter. 3.2mm length. 1.5mm shaft. Weighs 5.6g. max power 250W. 16.9A current. efficiency over 85% at 2-5A. Detailed performance data for various props included. GTS V3 1303plus-8000KV brushless motor specs: 8000 KV. 12N14P config. 13mm stator diameter. 5.6g weight. Max power 250W at 3S. max current 22.5A. efficiency over 85% at 2-6A. Detailed performance data for various props included. GTS V3 1303plus-11500KV motor specs: KV 11500. 12N14P configuration. 13mm stator diameter. 3.2mm stator length. 1.5mm shaft diameter. Max power 223W. max current 30.1A. efficiency over 85%. Detailed performance data for various props included. |
Shopping Guide: Add to cart. pay with Escrow. dispatch goods. sign for parcel. confirm and give five stars.
Payment methods include VISA. MasterCard. Western Union. and more. Payment must be made within 3 days. Aliexpress verifies payment within 24 hours. Refunds take 7-10 working days.
Shipping details for A19Q V3 Brushless Motor: Every product undergoes strict QC testing before shipment. Items ship within 48 hours of payment confirmation. excluding holidays. Worldwide shipping via EMS. DHL. UPS. FedEx. E-Packet. and China Post. Delivery times depend on third-party services. If your parcel hasn’t arrived as expected. contact support for tracking assistance and a prompt response. These logistics arrangements ensure timely. reliable delivery. Rest assured knowing each step prioritizes quality and efficiency in the shipping process.
A19Q V3 Brushless Motor provides on-time delivery. returns. refunds. extended protection. and guaranteed quality or full refund for perfect products.
Feedback: Leave 5 stars for discount. Contact within 24 hours if unsatisfied. Item as described. communication. shipping speed all rated 5 stars.
