Overview

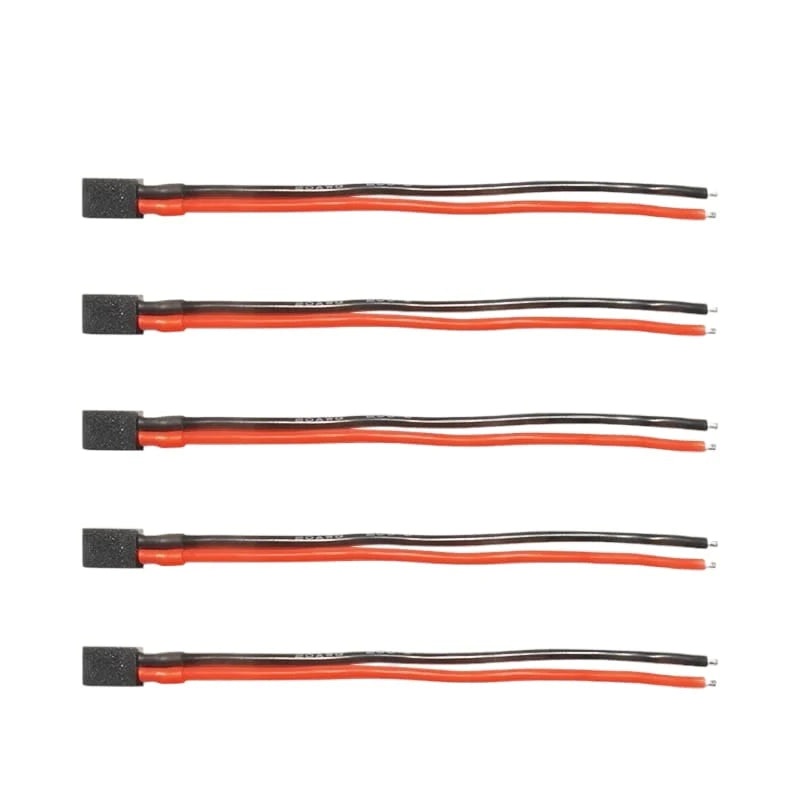

This A30-F connector pigtail set includes 5 pcs of A30-F 80mm 20AWG pigtails for drone power wiring, including ESC leads. A30 connectors are described as a higher-performance alternative to PH2.0 connectors and are rated for up to 15A of continuous current.
Key Features
- A30 connector system rated for 15A continuous current (A30); peak discharge rate listed as 30A
- 80mm pigtail length per lead
- 20AWG wire (title); wire specification listed as 20#/22# (A30 series)
- Alternative to PH2.0 connectors (PH2.0 stated as up to 4.5A continuous current)
For compatibility questions before purchase, contact support at [email protected] or https://rcdrone.top/.
Specifications
| Product | A30-F 80mm 20AWG pigtail |
| Quantity | 5 pcs |
| Continuous current (A30) | 15A |
| Peak discharge rate (A30) | 30A |
| Contact impedance (A30) | 1.6 m |
| Withstand voltage (A30) | DC 500V |
| Operating temperature (A30) | -20~120C |
| Flame retardant rating (A30) | UL94 V0 |
| Insulating material (A30) | PA66 |
| Metallic material (A30) | Brass gliding |
| Plug color (A30) | Black |
| Wire | 20AWG (title); 20#/22# (A30 series listing) |
Connector Dimensions (without cable)
| Model shown | A30-F (female connector without cable; for drone side) |
| Dimensions | 5.8 mm, 10.7 mm, 4.2 mm, 2.0 mm, 1.3 mm (unit: mm) |
| Additional reference shown | A30-M (male connector without cable; for battery side): 4.6 mm, 2.95 mm, 5.0 mm, 8.2 mm, 5.8 mm, 4.2 mm, 2.0 mm (unit: mm) |
Applications
- Drone power system wiring and ESC leads
- Chargers / battery connections (A30 series listing)
Whats Included
- 5 x A30-F 80mm 20AWG pigtail
Details
A30 and A30-F connector dimensions and specs are provided, including 15A standard current, 30A peak discharge, and DC 500V withstand voltage.
