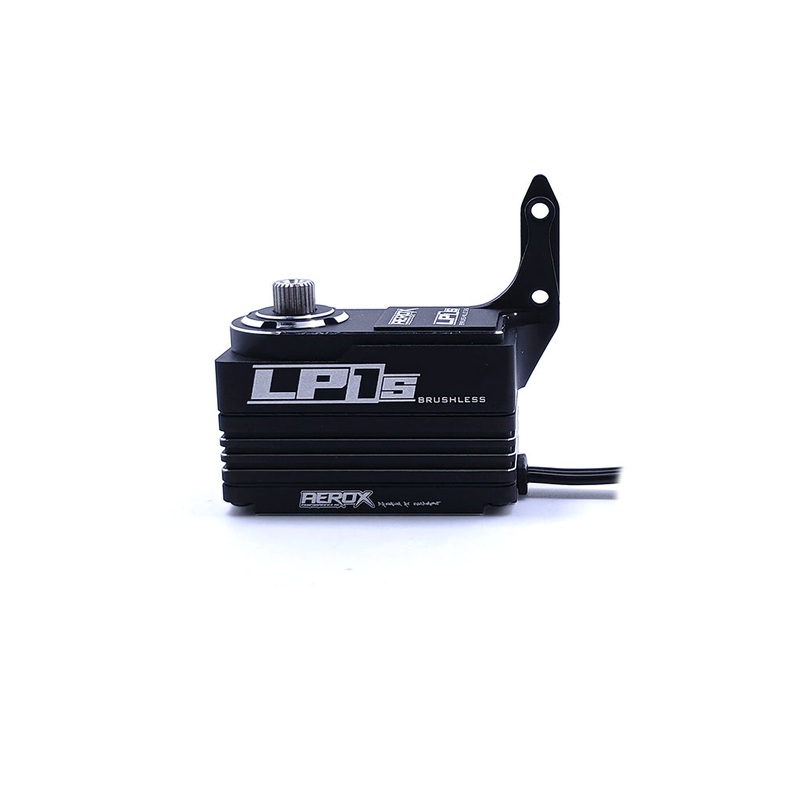

AEROX LP1s 1/10th Brushless Servo – Mi9 FT9

Aerox LP1s is 1/10th Brushless servo which is a direct mount for the Schumacher Mi9 and FT9.

Direct mounting servo’s can give a cleaner look and reduce weight.

This servo is for high level competition, boasing a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torqe requirements of modern touring cars.

Specifications

Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V)
Speed: 0.060 sec (7.4V)
Speed: 0.050 sec (8.4V)
25T Spline
Operating Voltage6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing TypeBall Bearing x 2
Motor TypeBrushless Motor
Gear TypeTitanium & Steel
Operating Temperature: -20~60
Working frequency1520s / 333hz
Size41.0 x 20.0 x 26.0 mm
