AGFRC A06CHR SPECIFICATIONS

Brand Name: AGFrc

Remote Control Peripherals/Devices: Servos

Tool Supplies: Battery

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Recommend Age: 14+y

RC Parts & Accs: Servos

Certification: CE

Use: Vehicles & Remote Control Toys

For Vehicle Type: Airplanes

Origin: Mainland China

Material: Metal

Upgrade Parts/Accessories: Gear

Model Number: A06CHR

Quantity: 1 pcs

Weight: 7.0 g

Gear: Metal Gears

Connector Wire: JST(JR) 165mm / 28AWG

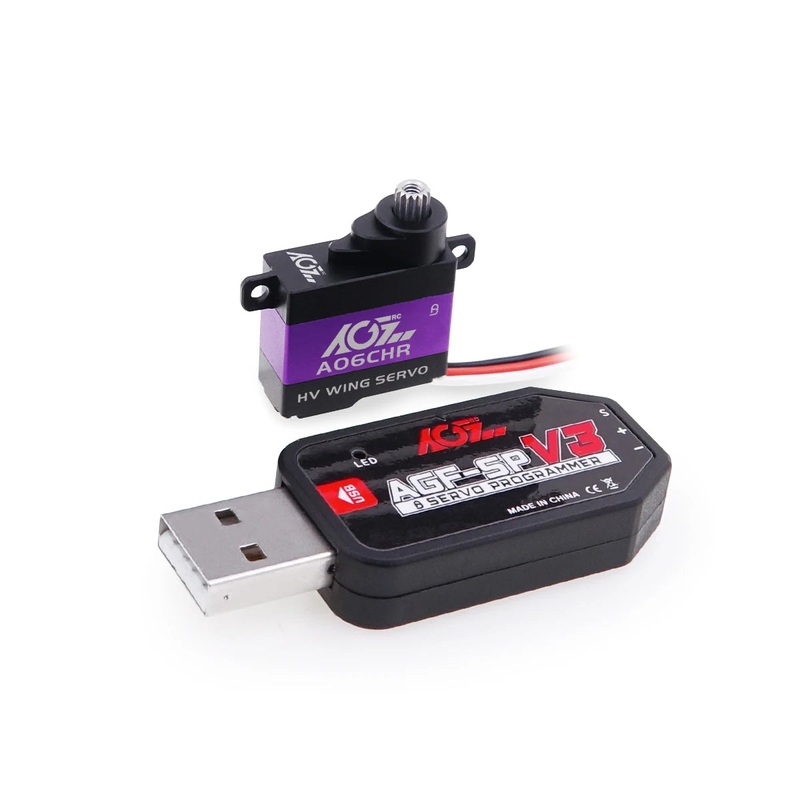

AGFRC A06CHR Metal Gears 3kg High Torque Coreless Motor Micro Wing Servo Ideal For Small Size Airplane F3P GLD Glider Sailplane

AGFrc A06CHR is a brand new 8mm thickness mini size wing servo, full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. Enhance the coreless motor, so that we can ensure to output the 0.052sec lightning speed & 3.0kg-cm high torque at 8.4V. Two different mounting tabs option (A06CHR and A06CLS V2), suitable for wing or fuselage mounting. High accuracy and 7g light weight which is perfect for small size aircraft and glider wings with limit space requirements.

Feature

Sturdy Metal Ball Bearing

Fully CNC Aluminium Casing

Super Durability Metal Gears

More Efficient Coreless Motor

High Accuracy 8mm Micro Wing Servo

Two Different Mounting Tabs Option

Parameter Programmable Available

Ideal for Small Size Airplane, Glider, Sailplane, such as F3P, GLD Airplane etc.

Specification

A06CHR

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec /60 @ 4.8V

Operating speed: 0.066sec /60 @ 6.0V

Operating speed: 0.058sec /60 @ 7.4V

Operating speed: 0.052sec /60 @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

MotorCoreless

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7.0 g

Connector Wire:JST(JR) 165mm / 28AWG

1. 0.052S High SPEED HNg SERVQ ULTR KOir Hv Ha 8mm 3KI High TORQUE Smooth Metal Bearing Durable Titanium Gear Hv HORELESS MOTOR 8.4V Wide Voltage Compatible 3 USB PROORAMMABLE DIGITAL HRGUIT Szrvo 0 Koi PedganNSE Connect like this . 180*+108 OPERATING VOLTAGE NET WEIGHT PULSE WIDTH MOTOR TYPE

About AGFRC

Huizhou AGF-RC Electronic Technology Co.,Ltd. is established in 2009, which is a high-tech enterprise owning more than 1200 square meters dust-free electronic manufacturing workshop, professional electronic R&D lab, SMT lines and high-precision CNC machines. Our technical team comes from Taiwan GWS and Guangdong Audi Toy, both are famous branded enterprises in RC industry. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all clients.

Since 2009, AGFRC has been focus on all series of RC servos, speed controllers(ESC), receiver modules and car gyros, supplying high quality RC products and RC solutions for many domestic and abroad famous brands. We are attracting more talents to join us for diversified development in RC control area, including high-frequency circuit, structure and software design, aim to achieve industrial-leading level in the field of model control or even other applications.

AGFRC is our new brand and all the products are certified with CE, ROHS, FCC. Hereby we welcome domestic and abroad dealers and distributors to be our agent, promote AGFRC all over the world. AGFRC expects to establish long term win-win cooperation with you! We promise AGFRC will serve all clients with higher standard, better quality and superior service.

Please note that AGFRC cannot guarantee delivery times for international shipments, as customs clearing processes vary by country. As such, buyers are responsible for any additional customs fees incurred during transit. We offer a one-month free replacement warranty, and buyers may request a replacement within 15 days of receiving their product.
