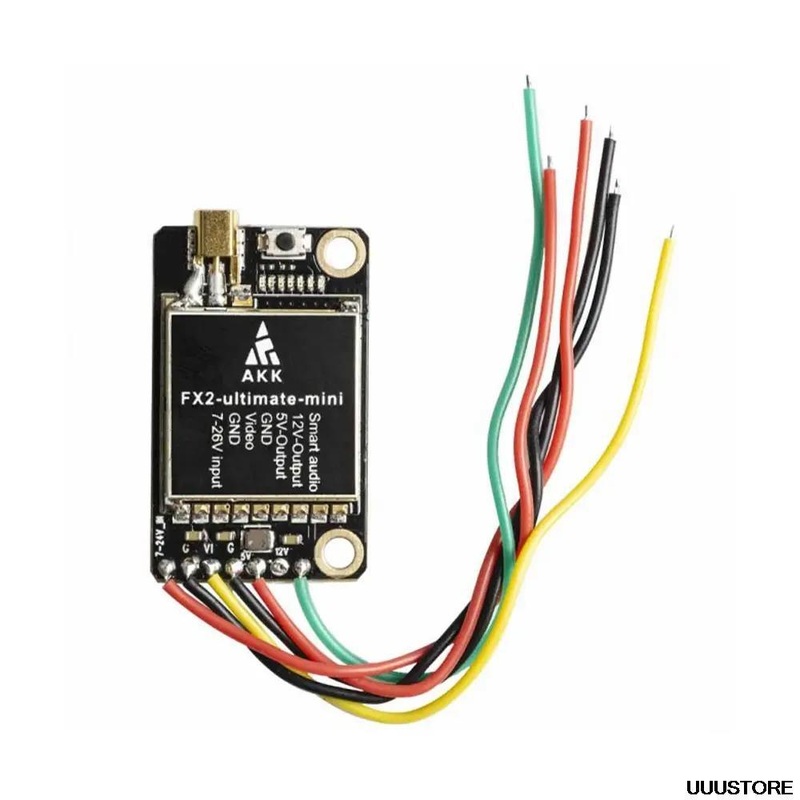

AKK FX2 Ultimate Transmitter – Mini 5.8GHz 40CH 25mW/200mW/600mW/1200mW Switchable FPV Transmitter for RC FPV Racing Drone RC Quadcopter

AKK FX2 Ultimate TransmitterSPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 3

Size: As Description Show

Remote Control Peripherals/Devices: Battery

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: AKK FX2 Ultimate Mini

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

AKK FX2 Ultimate Mini International Version 5.8GHz 40CH 25mW/200mW/600mW/1200mW Switchable FPV Transmitter
Pacakge Included:

1x VTX1x pigtail1x cableuct.
Description:
Brand name: AKK
Item name:FX2 Ultimate Mini International VersionInput voltage: 7V to 26VExtra features: Smart audio 1200mWPower supply: 5V/12V output for cameraOutput power: 25/200/600mW, 1200mWAntenna connector: MMCXCable connector: Solder padsDimension: 36x22mm, 30.5 stackable holeWeight: 8g (excluding antenna)Features:* Support Smart audio* 25/200/600/1200mW power switchable* One button frequency and power setup* OSD configuration using smart audio* 7-26V input with 5V output for camera* With MICNotice: 5645/5925/5945 (E4/E7/E8) are not available due to FCC regulation. Selecting 5645/5925/5945 (E4/E7/E8) will be invalid action.

Note:37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCCs amateur radio rules.Operators must require amateur radio license to operator legally inthe US. Use of amateur equipment without a license or use ofequipment on restricted frequencies could subject the operator tosignificant fines by the FCC.By purchasing this equipment, the user isagreeing that they understand these responsibilities and will operatethe equipment legally. More information related to ARL, please go tohttp://www.arrl.org/getting-licensed.

MMCX 5 Red LED for Band Button Blue LED for CH Green LED for Power 3.2mm Microphonel AKK FX2-ultimate-mini 36mm 2838 ZH 3 22mm Smart audio 7V-26V input 12V-output GND SV-Output VIDEO GND Specification Input voltage 7V to 26V Extra features Smart audio 1000mW Power supply SVI12V output for camera Output power 25/200/600mW, 100OmW Antenna
