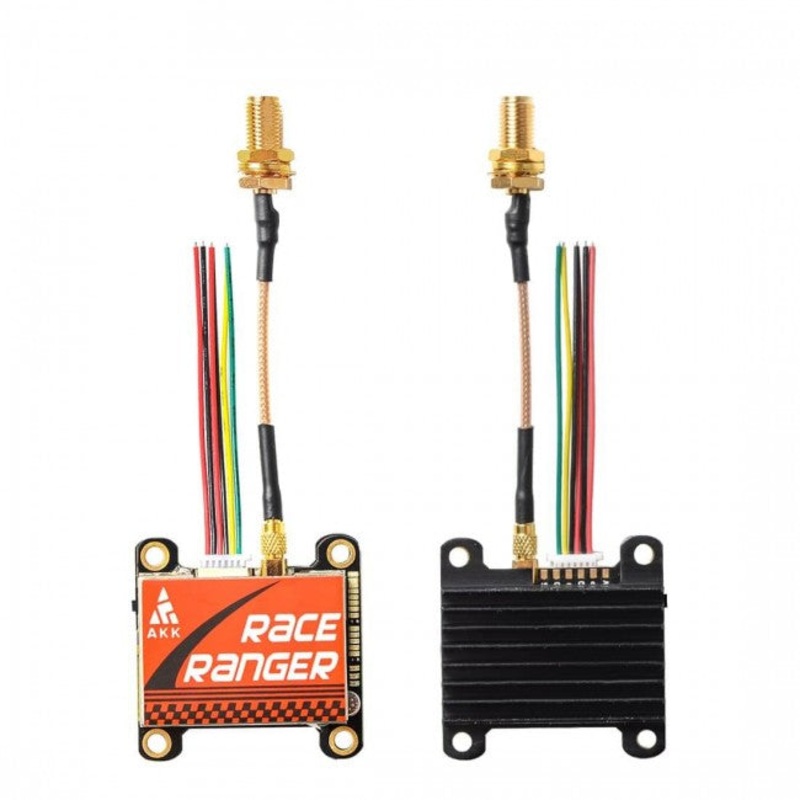

AKK Race Ranger 5.8G VTX SPECIFICATIONS

Brand Name: AKK

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: Receivers

Tool Supplies: Grinded

Quantity: 1 pcs

Technical parameters: Value 4

Four-wheel Drive Attributes: Assemblage

Color: As pictuture shows

Specification:

Input voltage: 7V-28V

Extra features: smart audio 1000mW

Power supply: 5V camera@under 500mA max

Output power: 200mW 400mW 800mW 1600mW(International version)

Antenna connector: MMCX

Cable connector: JST.6pin

Dimensions: 36(W) x 36(D)mm, 30.5 x 30.5mm(hole)

Weigh: 9.6g(excluding antenna)

Blue ED for CH 36mm AkK RaCE Button Green ED . for Band RaNGER 3 RedLED for Power Microphone 30.Smm Specification Input voltage 7V to 28V Smart audio Extra features 1600mw Power supply SV Camera @ under 5OOmA max: Output power 20OmW/4OOmWI8OOm WI6OOmW Antenna connector MMCX Cable connector JST, 6pin Dimensions 36 (W) x 36 (D) mm,

1 x Race RangerVTX

1x MMCX Antenna

1 X cable

1x Product manual

Heatsink 3mm MMCX Please do not remove heat sinkl Blue LED for CH 36mm AKK RacE Button Green LED for Band RaNGER 3 Red LED for Power Microphone 30.5
