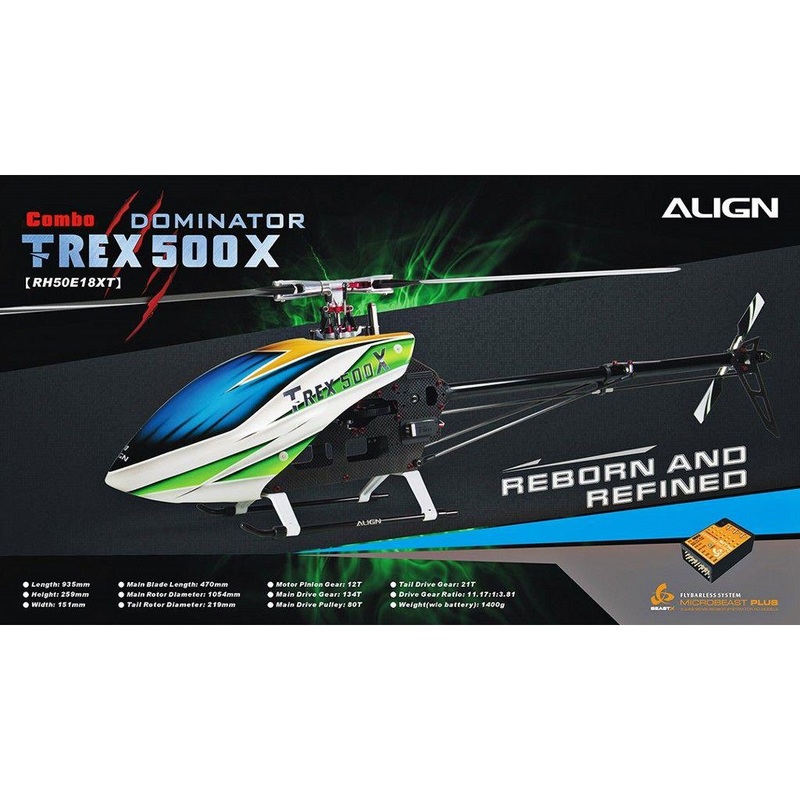

Align T-Rex 500X Dominator Configurable Combo : RH50E18XT-C

Align T-Rex 500X Dominator Configurable Combo : RH50E18XT-C

Configure your kit to include only the parts you require!

Experienced in numerous of innovations, the brand new T-REX 500X is now ready to go. More attractive and creative design ideas are all in here, it absolutely would be your favorite T-REX 500X model ever.

Refresh and refine, T-REX 500X adapt with brand new FL rotor head system, utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 500X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time to keep the best. Also T-REX 500X landing skid is tilted 5 degrees forward to improve crashworthiness.

T-REX 500X utilizes 470mm main blades and 520MX(1600KV/3527) motor with 20% power upgrades than the original 1600KV/3225 motor. The latest new RCE-BL80X Brushless ESC support dual BEC output from 6 ~ 8.4V providing efficient and superior power. The NEW DS530/DS535 digital servos are with extreme torque and speed response allow to support faster, more precise and accurate flight performance.

Equipped with all the top end electronic devices, T-REX 500X is as stable and powerful like the large scale helicopters. It is about to re-define the 500-class helicopters in your mind.

Specification

• Length: 935mm
• Height: 259mm
• Width: 151mm
• Main Blade Length: 470mm
• Main Rotor Diameter: 1054mm
• Tail Rotor Diameter: 219mm
• Motor Pinion Gear: 12T
• Main Drive Gear: 134T
• Main Drive Pulley: 80T
• Tail Drive Gear: 21T
• Drive Gear Ratio: 11.17:1:3.81
• Weight(w/o battery): approx. 1400g

Accessories (Included):

• T-REX 500X KIT Set x 1
• 78 Tail Rotor Blade x 1

Options (Configurable items):

• Microbeast PLUS Flybarless System x 1 set
• 470 Carbon Fiber Blades x 1
• 520MX Brushless Motor(1600KV/3527) x 1
• DS530 Digital servo x 3
• DS535 Digital servo x 1
• RCE-BL80X Brushless ESC x 1

Radio transmitter and electronic equipment required for assembly:

• Transmitter (6-channel or more, helicopter system)
• Receiver (6-channel or more)
• 6S Li-Po 2600 ~ 3300mAh (3300mAh suggestion)
• Digital Pitch Gauge

The above requirements are made on the basis that you purchase or already own all the optional configurable items listed above (or their equivalent alternatives).
