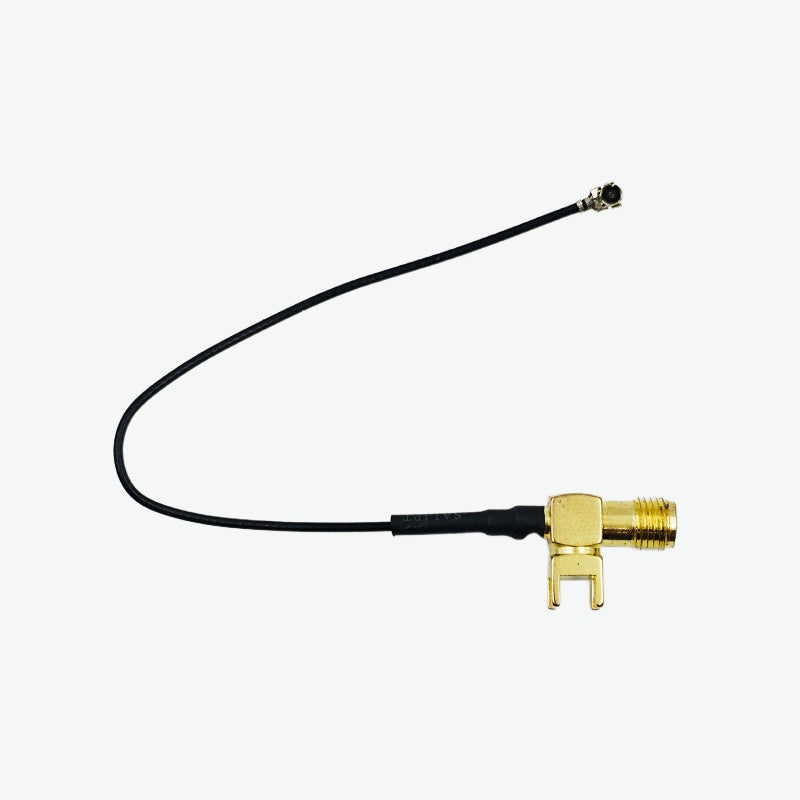

AntennaHome AHCG.102 RF 6GHz 1.13mm Female SMA-B to IPX Cable Assembly – 12 cm

The RF 6GHz 1.13mm Female SMA-B to IPX Cable Assembly – 12 cm delivers low-loss and stable signal transmission for high-frequency RF communication systems. Designed for reliable connectivity and compact routing, this cable assembly is ideal for RF transmitters, receivers, and communication modules operating up to 6GHz.

Features:

1. Supports wide frequency range from DC to 6000 MHz
2. Low insertion loss of 0.6 dB ensures high signal integrity
3. Excellent impedance matching with 1.3 VSWR for stable performance
4. Durable 1.13 mm black coaxial cable with SMA-KB and IPX connectors

Specifications:

• Model: AHCG.102
• Frequency: DC ~ 6000 MHz
• Impedance: 50
• VSWR: 1.3
• Insertion Loss: 0.6 dB
• Connector 1: SMA-KB
• Connector 2: IPX
• Cable Type: 1.13 mm Coaxial
• Length: 120 mm
• Material & Color: Copper / Black cable
• Mounting Type: SMA connector
• Weight: 4.0 g
• Operating Temperature: 40 C ~ +85 C

Package Includes:

1 RF 6GHz 1.13mm Female SMA-B to IPX Cable Assembly – 12 cm
