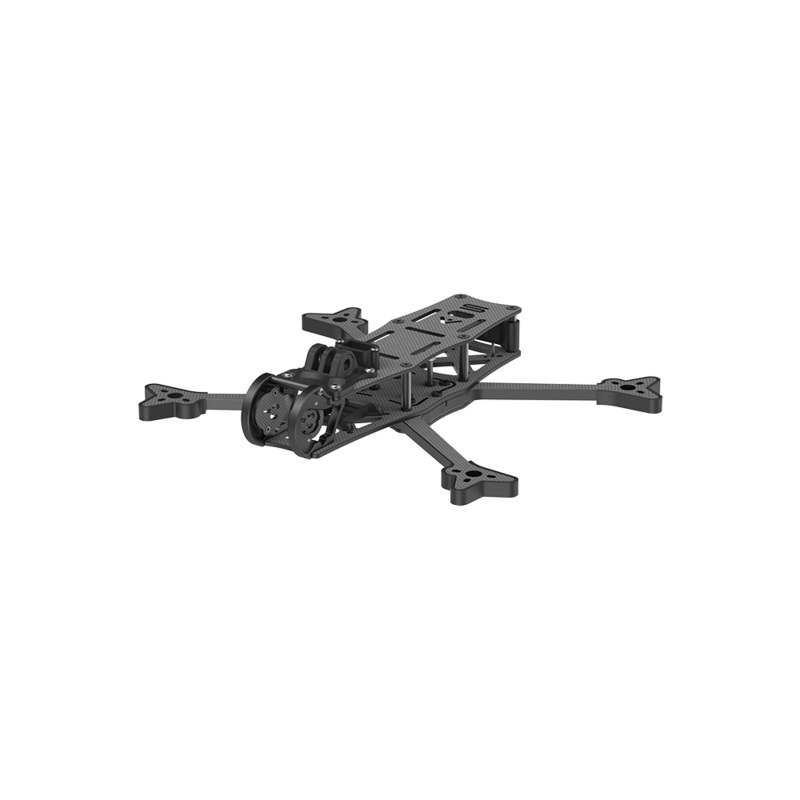

AOS 5 V5 Frame Kit

Discover the future of 5″ FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Changelog

Mar. 11, 2025:Frame Kit updated to be compatible with DJI O4 Air Unit and DJI O4 Air Unit Pro.

Features

Supports up to 5.2″ Props

AOS X-Cell Anti-Vibration Technology

Three 30.5×30.5, 25.5×25.5, or 20×20 mm stacks

155 FOV no props in view

Fully DJI O3 compatible (soft mount + ND filters)

Supports 19-20mm cameras (hard or soft mounted)

Reinforced 7075 Aluminum Camera Cage

Supports Lengthwise or Toilet Tank battery mounting

16 – 19mm motor mounting (supports all standard 5″ motors)

28x28mm M3 GoPro Mounting Pattern

32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Specifications

Product Name: AOS 5 V5 Frame Kit

Frame wheelbase: 228mm

Frame Dimension: L180*W140*H34 mm

Arm Thickness: 6mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Max Flight Stack Height: 20mm

Max VTX Height: 20mm

Motor Mounting: 19×19-3mm/16×16-3mm

Flight Stack Mounting: 20*20 3mm / 25.5*25.5 2mm / 30.5*30.5 3mm

VTX Mounting: 20*20 2mm / 25.5*25.5 2mm/30.5*30.5 3mm

Weight: 150g

Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit/DJI O4 Air Unit Pro

Packing List

1 x AOS 5 V5 Frame Kit

1 x TPU Parts

1 x Screw Bag

2 x Battery Strap

2 x Battery pads

Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 0.2mm. The size of the hole may have a standard manufacturing tolerance of 0.1mm.
