Redefining state of the art in FPV drone racing withAOS RC 5R V5 Drone Analog BNF – 6S – TBS. This drone is designed with cutting-edge patent pending technology to give you an edge over the competition. Innovation meets adrenaline with the AOS 5R V5. More advanced, more versatile, and more user friendly than any racing frame before it.
Be sure to check out ourBind-n-Fly collection as well as all of ourAOS RC products!
Features
- Easy to Build, Easy to Maintain
- Advanced Patent-Pending Anti-Vibration Technology
- Easy to Switch with Standard Camera and Standoff Spacing
- Reinforced Arm and Stack Mounting
- Customizable Arm Thickness
Specifications

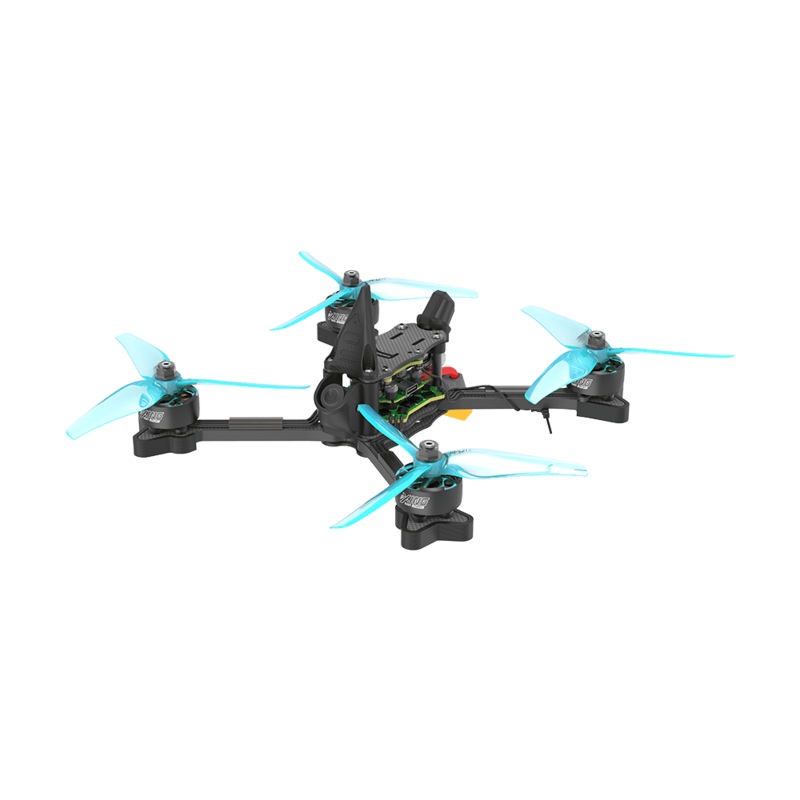

AOS RC 5R V5 DRONE
- Product Name: AOS 5R Analog BNF
- Geometry: True-X
- FC: BLITZ Mini F7 FC
- ESC: BLITZ E55R 4-in-1 ESC
- Video Transmission: BLITZ Mini Force 5.8g 600mW
- Frame: 201mm wheelbase
- Motor: R5 2207 2050KV motors
- Prop: Nazgul R5 V2 propellers
- Weight: 300g
- Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
- Dimensions (LWH): 14214238 mm
- Max Speed: 205 km/h (Manual Mode)
- Maximum Takeoff Altitude: 6000 m
- Max Hover Time: Approx. 13 min with 1400mAh no load
- Max Flight Distance: 5 km
- Operating Temperature Range-10 to 40 C (14 to 104 F)
- Antennas: Single Antenna
VIDEO TRANSMISSION
- Product Name: BLITZ Mini Force 5.8G 600mW VTX
- Output Power: PIT/25mW/200mW/400mW/600mW
- Input Volts: 5V
- Working Current: pit @80mA25mw@280mA100mw@405mA
- 400mw@485mA600mw@575mA
- Transmission fre: 40CH(A-B-E-F-R)
- Antenna Interface: MMCX
- Mounting Hole: 25 x 25 2mm / 20 x 20 3mm
- Weight: 4 grams (W/O antenna)
- Dimensions: 29mm x 29mm
Includes
- 1 x AOS RC 5R V5 Drone Analog BNF – 6S – TBS
- 1 x Battery pads
- 2 x Propeller (Pairs)
