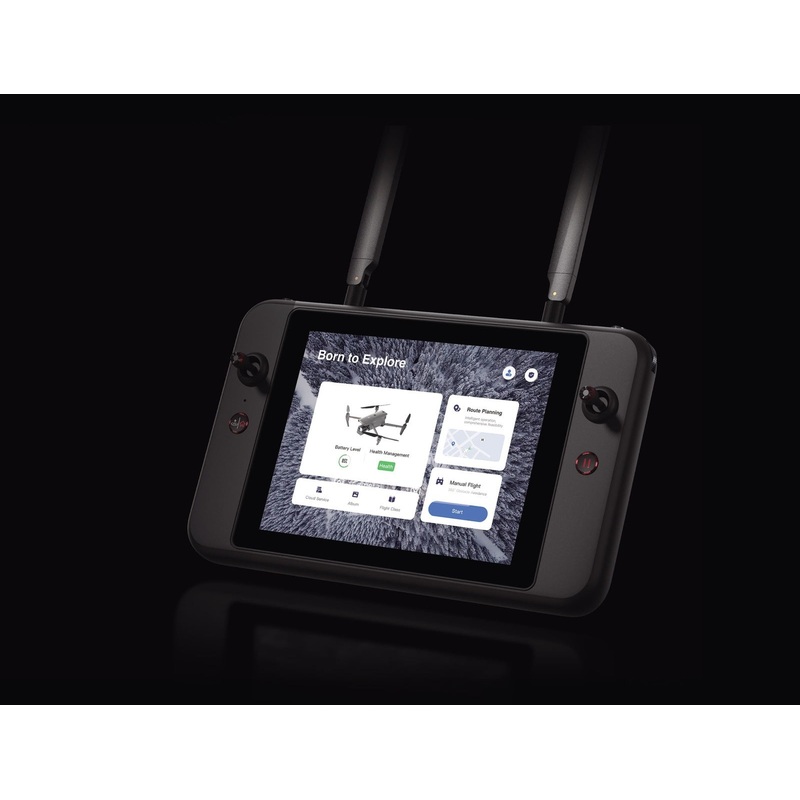

Autel Smart Controller 7.3′

The Autel Smart Controller V3 7.9-Inch features a 200-nit super-bright screen. The built-in display is four times brighter than a typical mobile phone screen and has a brightness that is twice as much as the next leading competition. The 7.9-inch QHD display has anti-glare coatings and enables crisp visibility in bright light.

The 5800-mAh Lithium-ion battery included in the package has a continuous usage time of up to 4.5 hours. It allows allows quick charging in only two hours. For those long days spent in the field, the Smart Controller is prepared to meet your needs in airborne operation.

With 128-GB internal storage, there is no need for external storage to save media files or flight records. Even better, you have a very responsive interface as the RC uses Qualcomm 8-core processor which can smoothly play 4K/60fps H.264 and 4K/60fps H.265 video.

Specifications

• Antenna	2 Antennas, 1T2R
  *Operating Frequency	902-928MHzFCC 2.400-2.4835GHz 5.725-5.850GHz
  Max Transmission Distanceunobstructed, free of interference	FCC: 9.3 miles (15km) CE/SRRC: 5 miles (8km)
  Transmitter Power (EIRP)	FCC33dBm [email protected], [email protected] [email protected], [email protected]/5.7G

• Wi-Fi


  Protocol	Wi-Fi 802.11a/b/g/n/ac, 2×2 MIMO
  *Operating Frequency	2.400-2.4835GHz 5.725-5.850GHz
  Transmitter Power (EIRP)	FCC26dBm [email protected], [email protected] [email protected], [email protected]

• Bluetooth


  Protocol	Bluetooth 5.0
  Operating Frequency	2.400-2.4835GHz
  Transmitter Power (EIRP)	11dBm

• Screen


  Resolution	20481536
  Dimensions	7.9inches
  Frame Rate	60fps
  Max. Brightness	2000nits
  Touch Screen	10-point multi-touch

• Battery


  Type	Li-po
  Rated Capacity	5800mAh
  Nominal Voltage	11.55V
  Energy	67Wh
  Operating Time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging Time	120 minutes
  Charging Temperature	5 to 4541 to 113

• General Specifications


  Internal Storage	ROM 128GB
  Video Output Port	HDMI
  USB-A Voltage/Current	5V/2A
  Operating Temperature	-4 to 104(-20 to 40)
  Storage Temperature	>3 months: -20 to 25-4 to 77 1-3 months: -20 to 45-4 to 113 <1 month: -20 to 60-4 to 140
  Ingress Protection	IP43
  Dimensions	26918966mm (antennas folded) 26930287mm (antennas unfolded)
  Weight	2.54 lbs /1150g (without protective case) 2.76 lbs / (with protective case)
  **Supported Aircrafts	EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3
  GNSS	GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS

Whats in the Box

• 1x Autel Smart ControllerV3
• 1x Smart controller protective case
• 1x A/C adapter
• 1x USB Type-C cable
• 1x Chest strap
• 2x Sparecommand sticks
• 1x Documentation (Quick Start Guide)
