Overview

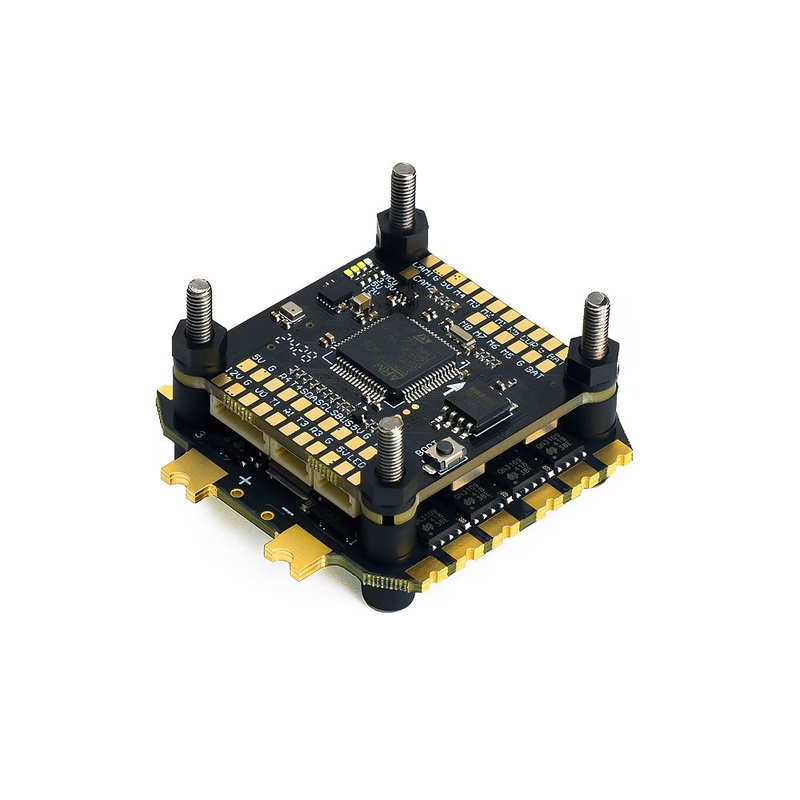

The Axisflying Argus ECO 60A/55A + F405 stack integrates a 46S BLHeliS 4-in-1 ESC with an F405 flight controller into a lightweight, open-board stack for FPV drones. As part of the Axisflying Argus electronics series, the ECO version reduces overall build weight while maintaining stable, precise control. It supports both HD and analog video systems and offers quick status indication via onboard LEDs.
Key Features
- Lighter ECO design compared with Argus Pro (no aluminum housing)
- Axisflying F405 FC with ICM42688P gyro and 16MB Blackbox
- 4 motor outputs for easy quadcopter builds
- HD and analog video systems supported; GPS supported
- Clear status indication via LEDs; open circuit board for flexible soldering
Specifications
Argus ECO F405 Flight Controller
| Firmware name | SPDXSPEDIX F405 (Betaflight) |
| MCU | STM32F405RGT6 |
| Gyro | ICM42688P |
| Blackbox | 16M |
| Barometer | Supported |
| Input voltage | 48S |
| BEC | 5V3A / 12V2A |
| UARTs | 5 Set |
| OSD | Supported |
| Size | 36*36*6mm |
| Install hole distance | 30.5*30.5mm |
| Weight | 7g |
| Interfaces (per pinout) | Camera (HD/Analog), GPS, SBUS, TBS/ELRS, LED strip, Buzzer, 4-in-1 ESC ports |
Argus ECO ESC 60A 6S BlHeliS
| Firmware name | Bluejay_QH30 (default) |
| Input voltage | 46S |
| Continuous current | 60A |
| Burst current | 70A |
| Amperage meter | 200 |
| Telemetry | Not supported |
| BEC | Not supported |
| Temperature protection | Supported |
| Size | 44.8*43*6mm |
| Install hole distance | 30.5*30.5mm |
| Weight | 13.5g |
| Mounting holes (per description) | M3-30.5*30.5mm |
Whats Included
- Connecting cable 1
- M3*30 screw 4
- M3 locknuts 4
- 35V 1000uF capacitor 1
- Rubber damping ring 8 (ESC4, FC4)
- XT60 power cable 1
- Connecting cable for receiver 1
- Connecting cable for HD 1
- Connecting cable for Analog 1
- Connecting cable for LED & beeper 1
Applications
FPV multirotor builds using a compact 30.530.5mm mounting pattern that require a 46S 60A BLHeliS ESC paired with an F405 flight controller, supporting both HD and analog video links and optional GPS.
Details
Flight controller with cables, screws, locknuts, capacitor, damping rings, power cable, and connectors for receiver, HD, analog, LED, and beeper.
