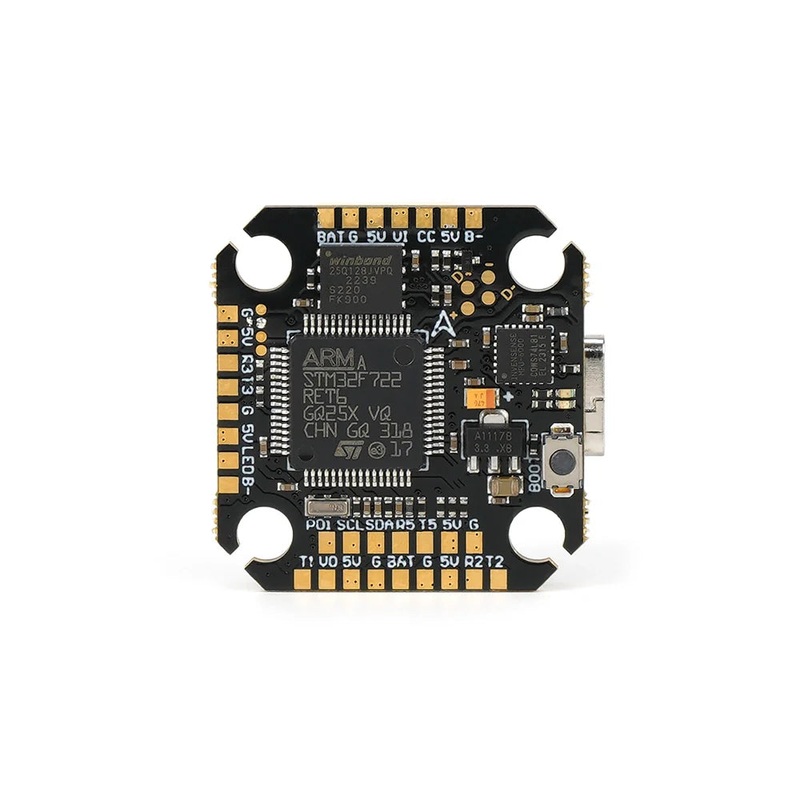

AxisFlying Argus Mini F7 Flight Controller MPU 6000 Gyro – 20x20mm

Argus is axisflying electronic series that include ESC, FC and stack.The lightweight Argus Miniargus mini is specially designed for small size FPV drone,reducing the weight of the whole FPV to a greater extent, while providing stable and excellent control.

Check out all our 20x20mm Flight Controllersand the rest of our Axisflying Products

Features:

• The FC supports up to 4 motor outputs, easily build your drone.
• Quickly check the working status of the FC by turning on and off the corresponding status indicator light.
• Open circuit board, free soldering equipment.

Specifications:

• FC: Axisflying F7 PRO
• MCU: STM32F722RET6
• Gyro: MPU 6000 or ICM-42688-P
• Input voltage: 4 -6S LIPO
• BEC: 5V (3A Max)
• OSD: Supported
• Barometer: Supported
• Blackbox 16MB
• Ports: UART 1-5
• Mounting Holes: 20*20mm M2/M3
• Size: 28.5×27.6.2mm
• Weight: 5g

Package Includes:

• 1 x Axisflying Argus Mini F7 Flight Controller MPU 6000 Gyro – 20x20mm
