Overview

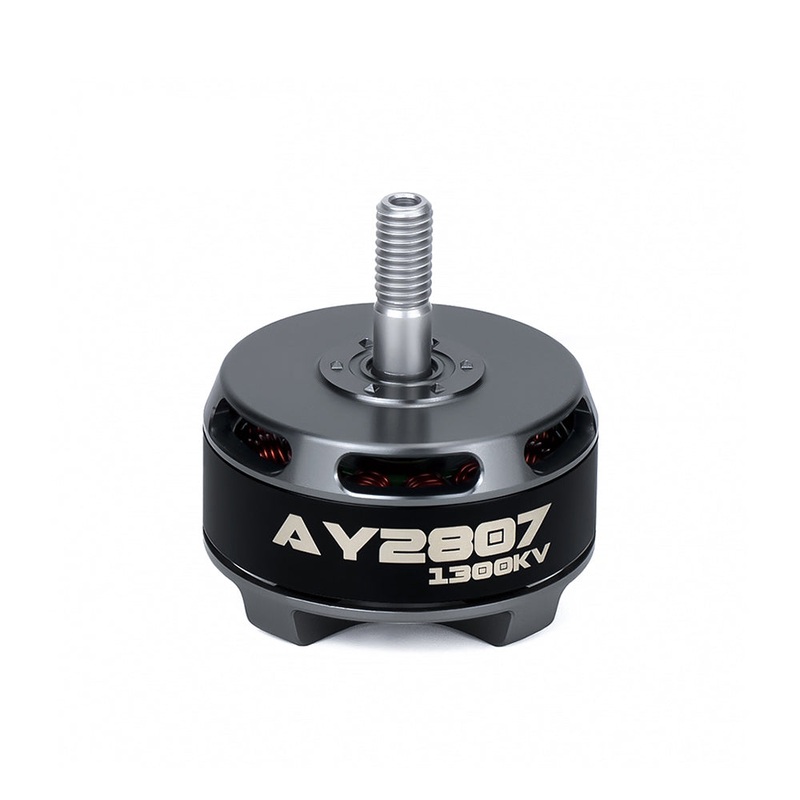

The Axisflying AY2807 is a 1300KV fpv motor engineered for 10-inch FPV drones used in cinematic, longrange and loading applications. It supports 4~6S power, delivers up to 2095g thrust, and uses a robust 5mm shaft with 12N14P configuration and silicone leads for reliable performance.
Key Features
- 1300KV class brushless fpv motor optimized for 10-inch builds
- 12N14P configuration with 5mm shaft for strong prop mounting
- 4~6S compatible; peak current up to 39.83A and max power 930W
- High thrust capability: up to 2095g (test data available below)
- Silicone wire 18# 250mm; weight (wire included) 56.2g
Specifications
| KV | 1300 |
| Configuration | 12N14P |
| Internal resistance | 49.6m |
| Size | 33.635.7mm |
| Shaft Diameter | 5mm |
| Silicone Wire | 18# 250mm |
| Rated Voltage | 4~6S |
| Weight (wire included) | 56.2g |
| Max Power | 930W |
| Peak Current | 39.83A |
| Max Thrust | 2095g |
| Idle Current | 1.25~1.45A |
Dimensions
- Motor diameter: 33.6mm
- Body length: 35.7mm
- Prop shaft thread: M5
- Mounting pattern: 4 M3 on 19mm
Test Data
Representative fullthrottle data from the manufacturer:
| Propeller | Voltage (V) | Current (A) | Thrust (g) | RPM | Power (W) | Efficiency (g/W) |
| GF 7035 | 23.09 | 37.20 | 2095.55 | 20974 | 858.95 | 2.44 |
| HQ 7040 | 23.16 | 39.83 | 2203.73 | 21641 | 930.03 | 2.37 |
Whats Included
- Accessories as pictured: mounting screws, prop nut, washer and Oring
Applications
- 10-inch FPV drones
- Cinematic and longrange builds
- Payload/loading platforms within the motors rated limits
Details
AY2807 motor offers 1300KV, 12N14P design, 33.6×35.7mm size, and 5mm shaft. It features 49.6m internal resistance, 18# 250mm silicone wires (56.2g), and operates on 46S voltage. Delivers up to 930W power and 2095g thrust, with 39.83A peak and 1.251.45A idle current. Includes 19 mounting, 4-M3 holes, M5 thread, and key dimensions: 35.7mm length, 15.2mm width.
Test data for AY2807 1300KV motor with GF 7035 and HQ 7040 props, including throttle, voltage, current, thrust, RPM, power, and efficiency. Includes screws, nuts, and washers.
