Overview

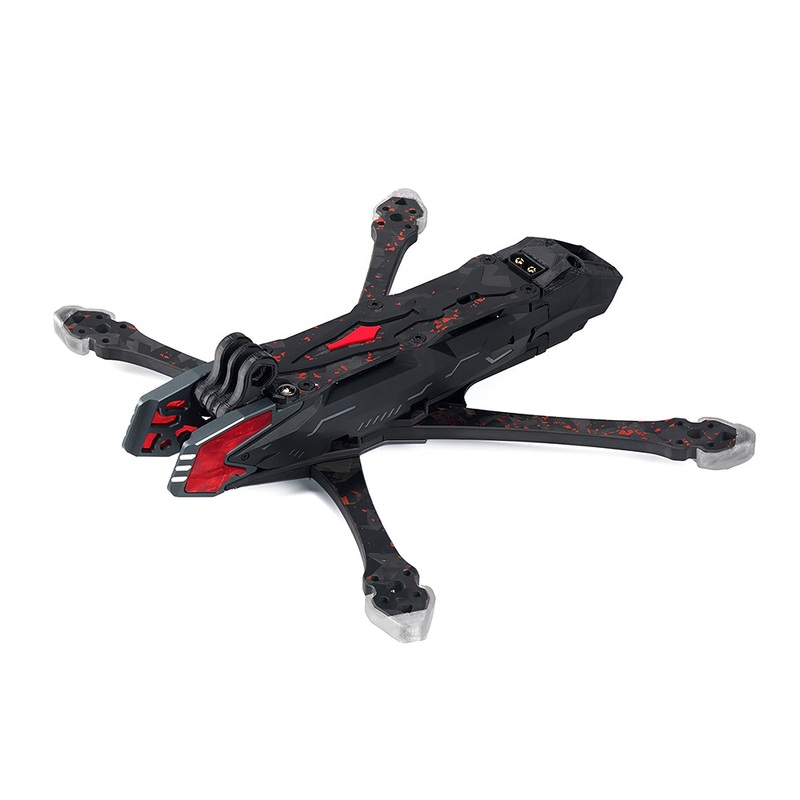

The Axisflying Manta 5 Pro DC Frame is a dedicated 5-inch FPV drone frame designed for cinematic and professional builds. It uses T700 carbon fiber plates and a DC-shape layout to keep the camera view unobstructed. The frame integrates 32 LEDs for DIY personalized lighting and provides O4 PRO-compatible VTX mounting. Precision machining, reinforced arms, and aluminum/exterior parts deliver a rigid, serviceable platform for 2207 motors and modern 6s power systems.
Key Features
- DC-shape design for an unobstructed lens, optimized for film and television shooting.
- 32 LEDs DIY personalized control.
- X-Tectonic carbon plate with forged carbon appearance.
- DC/wide X-type structure dual selection.
- T700 carbon fiber plates with 6mm arms for high rigidity.
- O4 PRO compatible only VTX mounting holes; includes O4 PRO silicone pads.
- GPS mount size indicated: 18*18mm.
- Supports 5-inch to Max 5.1 inch prop mounting holes.
Specifications
| Product name | Manta 5 Pro |
| Structure | DC |
| Wheelbase | 226.5mm |
| Top Plate | 2mm |
| Bottom plate | 3mm |
| Arm Thickness | 6mm |
| Carbon Fiber Grade | T700 |
| Stack height | 23mm |
| Camera thickness | 19mm, 20mm |
| Stack mounting holes | 20mm*20mm / M3 |
| VTX mounting holes | O4 PRO compatible only |
| Motor mounting holes | 16mm*16mm / M3 |
| Prop mounting holes | Max 5.1 inch |
| Frame weight | 219 5g (including exterior parts and aluminum parts) |
Recommended Configuration
- Recommended Motor: 2207 Series Motor
- Recommended Battery: 6s 10501550
- Recommended Stack: Axisflying Argus Mini 55A
Whats Included
- Carbon fiber plates and arm sets for DC/wide X-type structure.
- Aluminum side/camera parts and exterior components.
- TPU GoPro base.
- O4 PRO silicone pads (2pcs).
- Battery straps (2pcs).
- Arm/foot protection pieces (clear).
- LED module(s).
- Fasteners (as labeled in packing list): M1.6*5 (2pcs), M1.6*8 (4pcs), M2*4 (2pcs), M2*5 (4pcs), M2*7 (1pcs), M2*8 (5pcs), M3*6 (6pcs), M3*6 (4pcs), M3*9 (8pcs), M3*10 (10pcs), M3*10 (4pcs), M3*16 (4pcs), M3*30 (4pcs).
Applications
5-inch FPV builds focused on cinematic shooting, where a DC layout, stable 2207 motors, and O4 PRO VTX integration are desired.
Details
Manta 5 Pro Frame has a DC structure, 226.5mm wheelbase, T700 carbon fiber, weighs 2195g. Compatible with 2207 motors, 6S battery, Axisflying Argus Mini 55A stack, O4 PRO VTX, and 5.1-inch props.
32 LEDs DIY, X-Tectonic Carbon Plate, DC/wide X-type structure, O4 PRO Silicone Pad
DC-shape design, unobstructed lens, GPS:18*18mm, 228mm
Carbon fiber arms and aluminum components make up the Manta 5 Pro drone frame. Assemble by attaching arms, securing camera and base plates with screws, and mounting GoPro using pad screws and bolts.
Manta Pro drone frame components including arms, plates, screws, and accessories. Packing list displayed with parts organized by type and quantity. Brand AXS featured. Wishing you a safe and enjoyable flight.
