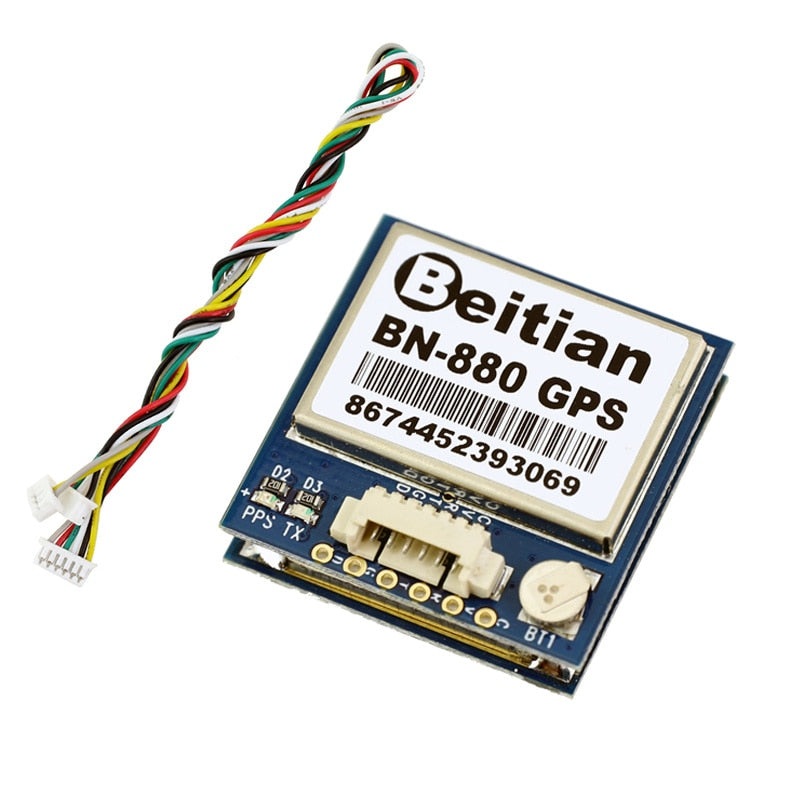

Beitian BN-880 BN880 Flight Controller GPS ModuleSPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembly Category

Technical parameters: Value 2

Size: 28mm*28mm*10mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y.14+y.3-6y.6-12y.0-3y

RC Parts & Accs: Gyros

Quantity: 2

Origin: Mainland China

Model Number: BN-880

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Certification: CE.pse.NONE

Brand Name: KINGMODEL

Description:
Model:BN-880
PowerSupply:DCVoltage2.8V~6.0V.Typical:3.3Vor5.0V
Consumption:Capture50mA@5V
ReceivingFormat:GPS.GLONASS.Galileo.BeiDou.QZSSandSBAS
ReceivingChannel:72SearchingChannel
ReceivingSensitivity:Trace-167dBm
Capture-148dBm
PositioningTime:ColdStart:avg26s
WarmStart:avg25s
HotStart:avg3s
LevelPositioningPrecison:2mAtOpenWind
OutputFrequency:1Hz-10Hz.Default1Hz
SpeedPrecison:0.1m/s(WithoutAid)
AccelerationPrecison:0.1m/s(WithoutAid)
DynamicCharacteristics:MaxHeight:18000m
MaxSpeed:5153m/s
MaxAcceleration:4G
UARTInterface:UARTPort:TXDAandRXDA
SupportRate:4800bpsto115200bps.Default 38400dps
WorkingTemperature:-40-+85
StorageTemperature:-40-+85
Size:28mmx28mmx10mm
Weight:10g
TheModule’sPins:SDA.GND.TX.RX.VCC.SCL

Features:
GPSModule.DualModuleCompass
WithelectroniccompassICHMC5883L
1.25mmspacingbetweenthe6pinspatchseat

Note:CannotuseforflightcontrolwithSCM.butitis suitableforOpensourceflightcontroller.

PcakageIncluded:
1x BN-880GPSModule
1x 15cm Cable
OR
2x BN-880GPSModule
2x 15cmCable

0J Tx PIN PIN Name IO Description SDA Compass SDA GND Ground Tx Serial Data Output: RX Serial Data input VCC 3OV5 SV supply input_Typical: 5.OV SCL Compass
