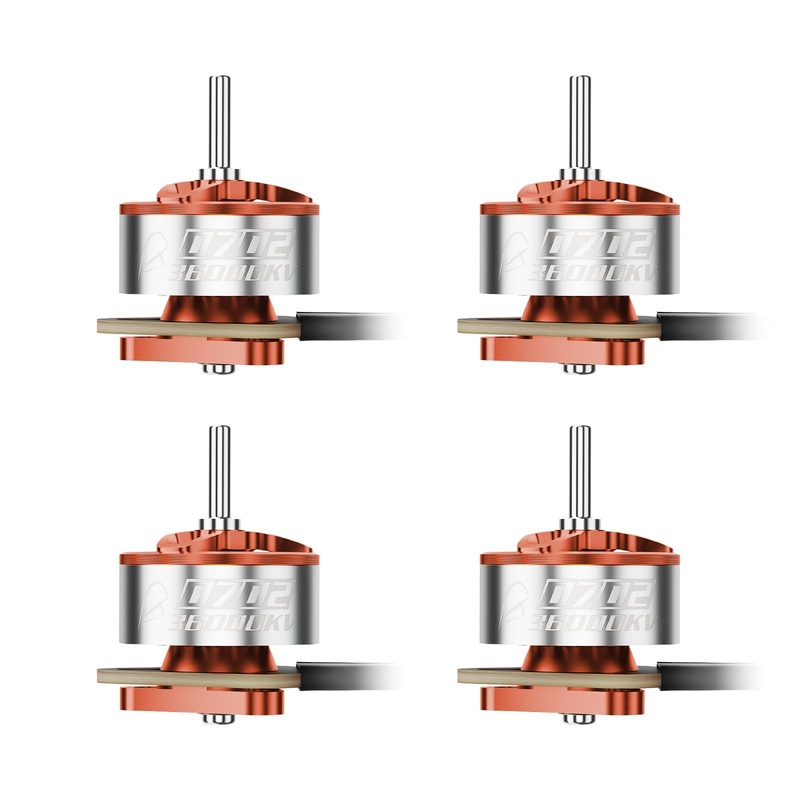

BetaFPV 0702 Brushless Motor Set (2026) 0.10mm Stator Core, 1S, 25000/30000/36000KV

Overview

BetaFPV 0702 Brushless Motors (2026) are 1S micro whoop brushless motors featuring an industry-first 0.10mm stator core to improve efficiency and reduce heat from magnetic losses. This series is offered in three versions designed for the Air65 II whoop: Champion (36000KV), Racing (30000KV), and Freestyle (25000KV), each with specific magnetic circuit and winding designs.

Key Features

• 0.10mm thinnest stator core tech: tested efficiency gain of 0.10.2 g/W compared to 0702 motors with a 0.15mm core.
• Three precision-tuned versions for Air65 II:
  • Champion (36000KV): dual ball bearings; maximum power and responsiveness.
  • Racing (30000KV): high RPM and fast response for technical race courses.
  • Freestyle (25000KV): smooth control with strong low-throttle torque.
• Bearing design: Champion uses dual ball bearings; Freestyle/Racing use brass bushings.
• Durability updates: upgraded rotor materials and optimized shaft design.

Specifications

Parameter	Champion	Racing	Freestyle
KV	36000KV	30000KV	25000KV
Maximum Power	27.53W	23.3W	15.01W
Maximum Current	7.17A	6.03A	3.86A
Bearing Type	Dual-ball bearings	Brass bushings
Weight	1.59g	1.50g
Rated Voltage	4.2V (1S)
Shaft Diameter	1.0mm
Shaft Length	3.4mm
Wire Gauge	30AWG
Wire Length	35mm
Connector	JST1.25 3Pin
Mounting Hole Size	3*M1.4 EQS 6.6mm

Dimensions

• Motor diameter: 9 mm
• Motor height (body): 8.55 mm
• Overall height: 11.95 mm
• Shaft diameter: 1 mm (also shown as 1mm / 0.04in)
• Shaft length: 3.4mm (also shown as 3.4mm / 0.13in)
• Wire length: 35mm (also shown as 35mm / 1.38in)
• Base width shown: 9mm (also shown as 9mm / 0.35in)

Load Performance

Outline drawing unit: mm. Connector shown: JST 1.25 3Pin. Wire shown: 30AWG. Mounting shown: 3-M1.4EQS, 6.6.

Model	Propeller	Voltage (V)	Throttle (%)	Current (A)	Thrust (g)	Efficiency (g/w)	Input (W)	Speed (RPM)
Champion 0702 – 36000KV	GF 1207-3P	3.92	20	0.74	2.0	0.69	2.90	5602
3.92	30	1.15	6.4	1.42	4.51	25866
3.91	40	1.93	11	1.46	7.54	33792
3.90	50	2.75	15.7	1.46	10.72	40248
3.89	60	3.48	20.6	1.52	13.53	45775
3.88	70	4.24	25.5	1.55	16.43	51074
3.87	80	5.13	30.5	1.54	19.83	55825
3.85	90	6.03	34.8	1.50	23.21	59947
3.84	100	7.17	39.3	1.43	27.53	63597
Racing 0702 – 30000KV	GF 1207-3P	3.93	20	0.42	1.8	1.09	1.65	14757
3.92	30	1.01	5.1	1.28	3.97	23541
3.91	40	1.71	9.3	1.39	6.69	31298
3.90	50	2.39	13.5	1.45	9.32	37570
3.89	60	3.01	17.9	1.53	11.70	43046
3.89	70	3.62	22	1.56	14.07	47557
3.88	80	4.35	26.8	1.59	16.85	52514
3.87	90	5.07	31.3	1.60	19.60	56887
3.86	100	6.03	35.7	1.54	23.23	60394
Freestyle 0702 – 25000KV	GF 1207-3P	3.93	20	0.21	1.1	1.36	0.81	12534
3.93	30	0.57	3.5	1.57	2.23	20705
3.92	40	0.97	6.5	1.70	3.82	27855
3.92	50	1.43	10.4	1.86	5.58	33787
3.91	60	1.84	14.3	1.98	7.21	38905
3.91	70	2.24	17.7	2.02	8.76	43233
3.90	80	2.68	21.4	2.05	10.45	47380
3.89	90	3.19	25.2	2.03	12.40	51113
3.88	100	3.86	28.8	1.92	15.01	54755
Remark	The above data represents the test samples only.

Recommended Parts

• Propellers: GF 1207 3-B Props (Champion/Racing), GF 1219S 3-B Props (Freestyle)
• Frame: Air65 II Frame, Air65 Champion Frame
• FC: Matrix 1S 5IN1 II
• Battery: LAVA II 1S 280mAh/320mAh

Whats Included

• 4 0702 Brushless Motors (2026) (Champion or Racing or Freestyle)
• 12 M1.4*3 screws

For compatibility questions (Air65 II versions, connectors, mounting) or build support, contact https://rcdrone.top/ or email [email protected].

Choose the 0702 version that matches your build goalChampion for maximum punch, Racing for fast response, or Freestyle for smooth low-throttle control.

Compact 0702 sizing with a 1.0mm shaft and 35mm lead makes fitment straightforward on 1S micro whoop frames.

The 0.10mm stator core is built to improve efficiency and help reduce heat from magnetic losses.

Efficiency gains are most noticeable through the mid-throttle range where micro whoops spend much of their flight time.

Hardware differs by versiondual ball bearings on Champion, and brass bushings on Racing and Freestyle.

Upgraded rotor materials and an optimized shaft design are intended to improve long-term durability.

Performance tables provide a quick way to compare current draw, thrust, and efficiency between KV options.

Details

Each pack includes four motors with mounting screws for a clean, consistent rebuild or full whoop refresh.
