ExpressLRS now supports direct PWM output from receivers that have been specifically designed for this mode. BETAFPV ELRS Micro receiver features PWM output for the application of fixed-wing, helicopters, RC cars, boats and etc, and supports failsafe function, which can protect RC models from being out of control. Besides, the plug-and-play design makes it very easy and friendly to use.
Note: To work with PWM receiver, please make sure the TX and RX firmware is ELRS V2.0.0.
Specification

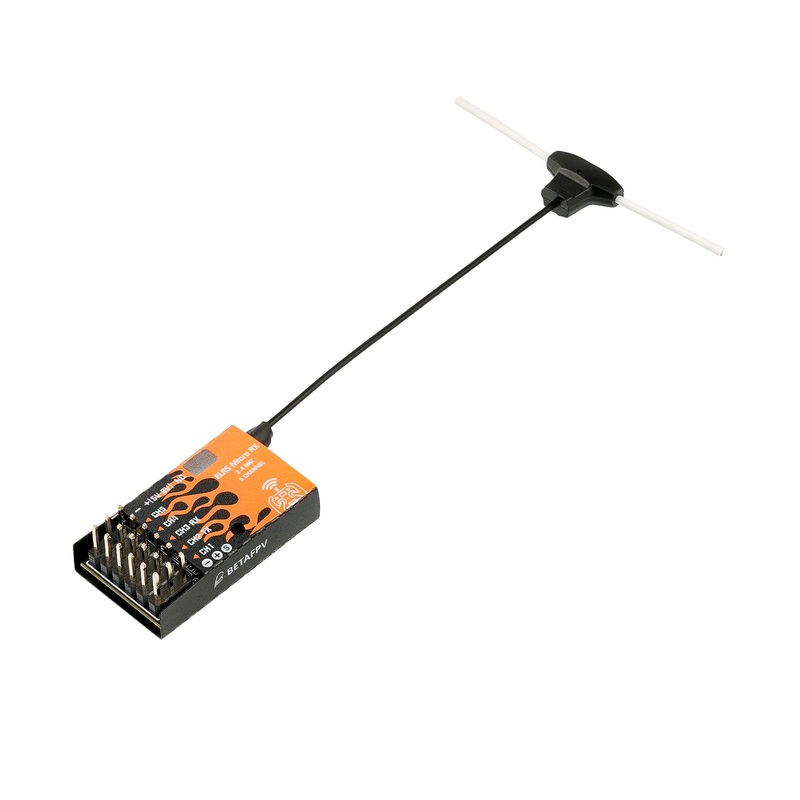

- Item: BETAFPV ELRS Micro Receiver
- Weight: 4.5g (with antenna)
- Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
- PWM channel: 5 channels
- Serial output protocol: PWM or CRSF
- Size: 19mm*32mm*9mm (without antenna)
- MCU: ESP8285/SX1280/SX1281
- Telemetry power: 12.5dbm/17mW
- Frequency bands: 2.4GHz ISM
- Input voltage: 5V~9V DC @ “+” pad
- Default firmware version: ExpressLRS v2.0
- Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.
Included
- 1 * ELRS Micro Receiver
- 1 * BETAFPV 80mm T antenna
