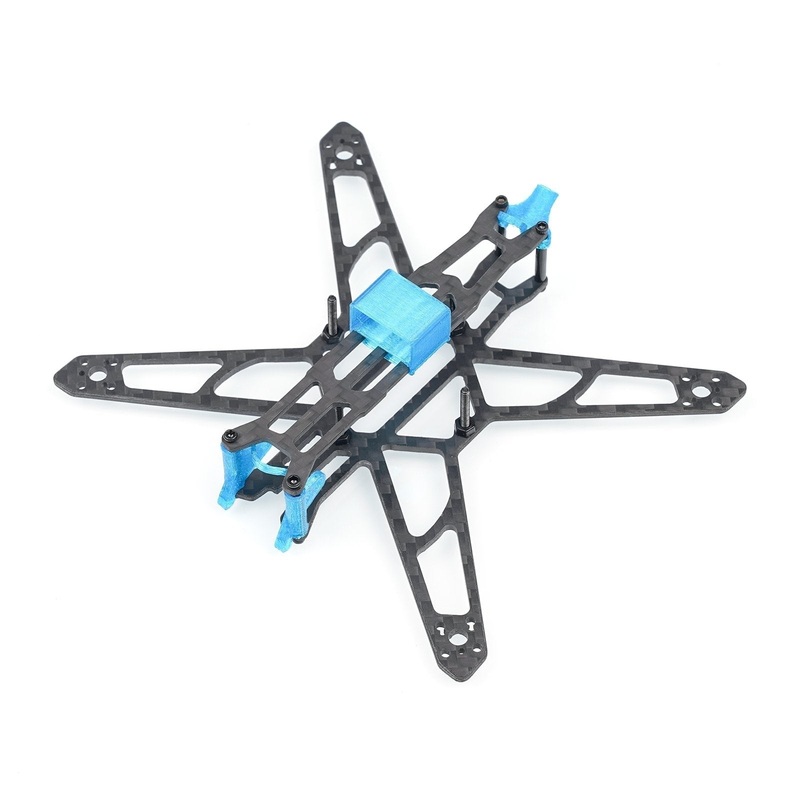

This is the frame kit for the HX115 LR drone. It is designed for a long-range ultralight 3″ 1S drone with the 12A 1S FC board integrated ExpressLRS receiver.
Specification
- Material: T700 Carbon Fiber
- Wheelbase: 126mm
- Weight: 14g
- Top plate thickness: 1.5mm
- Bottom plate thickness: 2.0mm
- Motor mounting hole (4 holes pattern): 9 x 9
- Motor mounting hole (3 holes pattern): 6.6 x 6.6
- FC mounting hole: 26.5mm x 26.5mm
Recommend Parts
If you want to try the popular ExpressLRS receiver version for long-range performance, highly recommend you to check the items for the ExpressLRS series .
- Recommend for drones like HX115 SE Toothpick Drone / HX115 LR Toothpick Drone
- Battery: BT2.0 450mAh 1S 30C Battery
- Motor: 1102 18000KV motor
- Propeller: HQ3020 2-blade props
Resources
- CLi Dump and other tips for HX115 LR
Included
- 1 * HX115 LR frame
- 4 * Aluminum standoff 15mm
- 8 * M1.6 screws
- 3 TPU 3D printed parts
