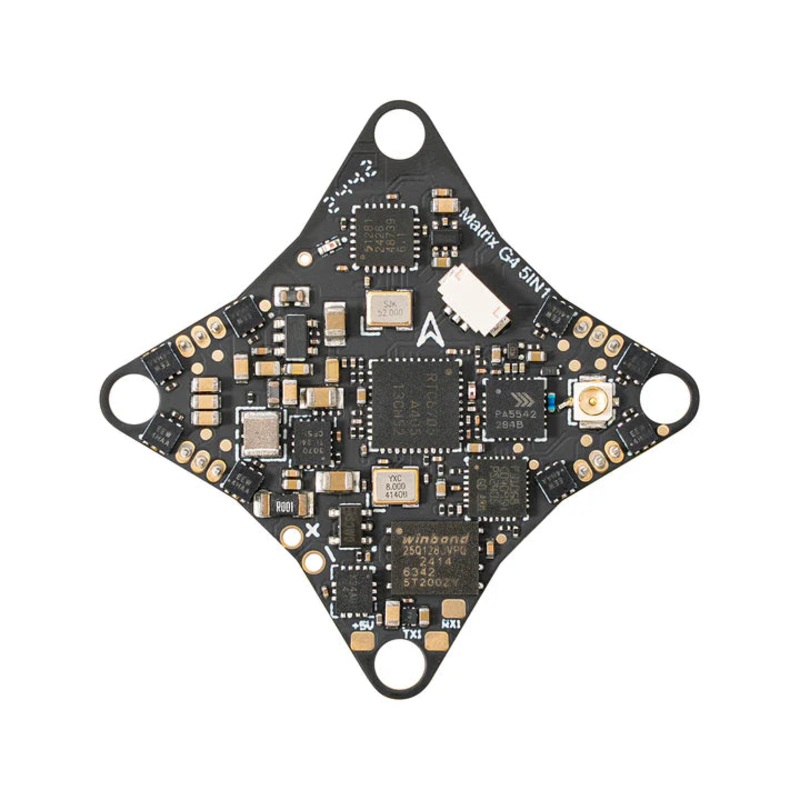

BetaFPV Matrix 1S Brushless AIO Flight Controller

The Matrix 1S Brushless Flight Controller is a highly integrated solution designed for beginners and FPV enthusiasts. Its robust 1mm-thick board ensures durability during intense training, while the built-in motor connectors simplify installation, eliminating welding. Upgraded with the G473 processor, it delivers a 55% performance boost over the F411 for more precise control in racing and freestyle. Plus, its premium 5.8GHz 400mWVTX ensures stable, high-quality video transmission.

Attention

• The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and no welding requiredmaking it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, theAir Brushless FC 5IN1 versionis highly recommended. The Matrix 1S Brushless FC and Air Brushless FC 5IN1 Version have undergone rigorous testing and meet competition-grade standards.

• Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.
• VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.
• VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burnout.

Bullet Points

• Built Tough: The Matrix 1S Brushless FC features a robust 1mm-thick circuit board. While slightly heavier, this design enhances durability for everyday training. For advanced pilots, theAir Brushless FC 5IN1 Verionprovides a lighter alternative.
• Simplified Installation: The Matrix 1S Brushless FC is a true all-in-one flight controller with integrated FC+VTX+OSD+ESC+RX, plus standard motor connectors, making setup and maintenance remarkably easy. Ideal for FPV beginners, this design requires no welding and ensures a smooth installation experience.
• Upgraded Performance: Upgraded with the G473 processor, the Matrix 1S Brushless FC achieves a remarkable 55% increase in computing speed over the F411, delivering swift response for precise racing and complex freestyle maneuvers.
• Premium Video Transmission: Equipped with a high-quality 5.8GHz VTX supporting up to 400mW, the Matrix 1S ensures stable, accurate transmission for both daily flying and competitive racing.

Specifications

FC

• MCU:STM32G473CEU6
• Gyro:ICM42688P
• Blackbox memory: 16MB
• Sensor: Voltage & Current
• BEC: 5V, Max. 3A
• UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
• BetaFlight OSD: AT7456E
• ESC: 5A continuous
• RX:Serial ELRS 2.4GHz (V3.4.3)
• VTX: 5.8GHz 48 channels, Max. 400mW
• FCfirmware:Betaflight_4.5.0_BETAFPVG473
• USB port:SH1.0-4Pin
• Motor Connector: JST1.25
• Battery connector: BT2.0
• Mounting hole size: 26mm x 26mm
• Weight: 3.920.1g

ESC

• Power input: 1S Only
• Current: 5A continuous, 8A peak
• ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
• Digital signal protocol: DShot300, DShot600

VTX

• Output power: 25/100/200/400/PIT
• Frequency: 5.8GHz 48 channels, with Raceband:5658~5917MHz
• Channel SEL: SmartAudio2.0
• Modulation type: FM
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency stability: 100KHz (Typ.)
• Frequency precision: 200KHz (Typ.)
• Channel carrier error: 1.5dB
• Antenna port: 50
• Operating temperature: -10~+80

Diagram

Below is the diagram for Matrix 1S Brushless FC.

Serial ELRS 2.4G RX

Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELR
