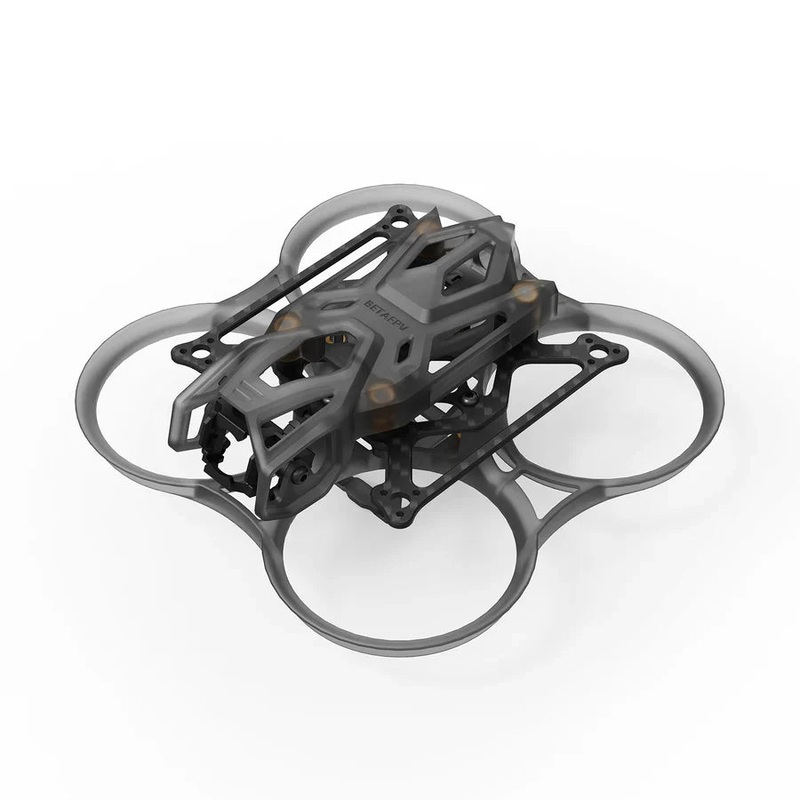

BetaFPV Pavo Femto Brushless Whoop Frame (For DJI O4)

The Pavo Femto Brushless Whoop Frame delivers enhanced performance and robustness, boosting thrust by 4% within a compact design. It incorporates strengthened connections between the whoop duct and carbon fiber plate, featuring additional supports and constraints for a secure fit. Tailored for the DJI O4 Air Unit, it offers a reinforced protective casing for the circuit board. The O4 Air Unit Bracket is also compatible with Pavo Femto, Pavo Pico, and Pavo20 frames, supporting a range of FPV configurations.

Package Includes:

1x BetaFPV Pavo Femto Brushless Whoop Frame Kit

Features:

• Enhanced Assembly: Improved connection between the whoop duct and carbon fiber plate with added supports for secure, hassle-free assembly.
• Boosted Thrust: Smaller duct design increases thrust by approximately 4%.
• Improved Durability: Strengthened protection for DJI O4 Air Unit’s circuit board.
• Wide Compatibility: O4 Air Unit Bracket works seamlessly with Pavo Femto, Pavo Pico and Pavo20.

Specifications:

Item: Pavo Femto Brushless Whoop Frame

Wheelbase: 75mm

Carbon fiber plate thickness: 2mm

Whoop duct material: PA12

Whoop duct weight: 8.64g

Frame weight: 22.16g

Flight controllermounting hole size: 25.5mm * 25.5mm

Motormounting hole size: 3*M1.4 EQS 6.6

O4 Air Unit Bracket material: PA

O4 Air Unit Bracket weight: 6.05g

Camera mounting spacing: 20mm
