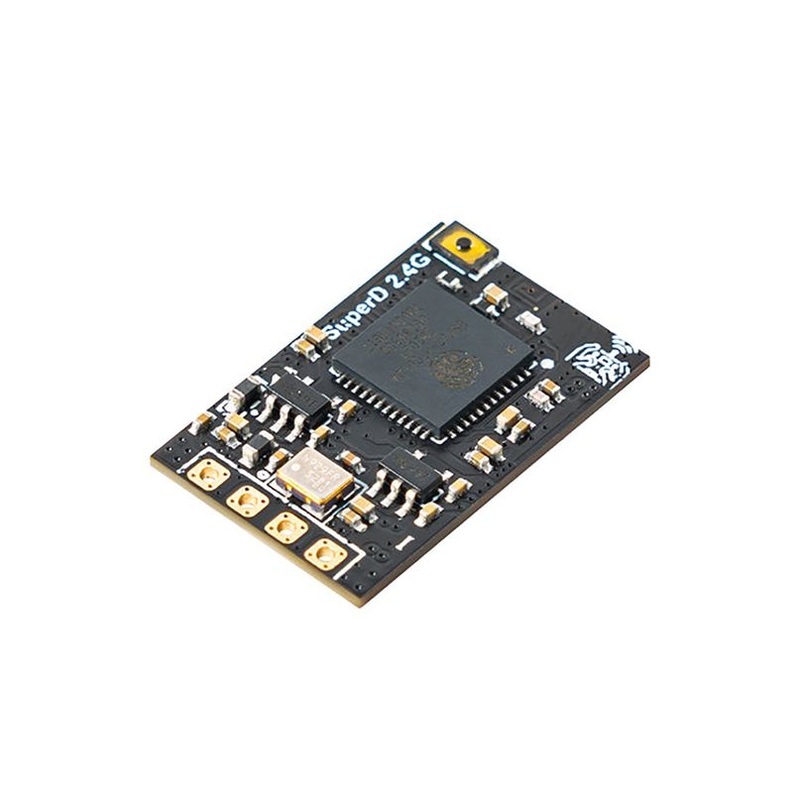

BETAFPV SuperD ELRS 2.4G Diversity Receiver ExprssLRS RX 2T Antennas TCXO IN For RC FPV Long Range / Freestyle FPV Drone

BETAFPV SuperD ELRS 2.4G isthe world’s first True Diversity Receiver that applies two antennas, dual receiver chains, and TCXO(temperature compensated crystal oscillator) tech, achieving super accurate frequency rate and excellent performance in extreme temperature environments. It greatly fulfills the requirements of reliability for long range flying, aerial photography, or FPV freestyle tricksBullet Points

• A true diversity receiver withtwo complete RFreceiver chains (referring to PA+LNA+SX1280), based on the latest official ExprssLRS. It comes with ExpressLRS V3.0.0 firmware.

• Ultralight weight only 1.1g without the antenna. The receiver board features a reasonable layout and is impeccably clean. Very easy to solder.

• Two Dipole T antennas will create an omnidirectional signal for good signal transmission. Placing the antennaseparately and vertically as far part as possible to get a better signal is recommended.

• Not only it is used for FPV drones but also for FPV fixed-wing, or other FPV aircraft. It has superb performance in long range flying.

Specification

• Item:BETAFPV SuperD ELRS 2.4G Diversity Receiver

• MCU: ESP32PICOD4,dualSX1280 (SX1281)

• Antenna Connector:IPEXMHF1/U.FL

• RFFrequency:2.4GHz(2400~2480MHz)

• Telemetry Power:20dBm (100mW)

• Receiver Protocol:CRSF

• Input Voltage:+5VDC@+pad

• PCB Size:22mm*14mm

• Weight: 1.1g excluding antenna

First True Diversity Receiver with TCXO

SuperD ELRS 2.4G Diversity Receiver is built-in a TCXO (temperature compensated crystal oscillator), which is shared by two RF chips for a super accurate clock source.The true diversity receiver including two RF chips and PA+LNA will generate a large amount of heat when working. With the high-quality TCXO, it can withstand extreme temperatureswith no fear of heat and cold,continuously outputting accurate frequency for long range flight.

BETAFPV ExpressLRS Receivers

SuperD ELRS 2.4G Diversity Receiver has dualRF receiver chains with two antennas, ensuring longer and more stable flying for FPV drones andRC airplanes. Choosing a suitable receiver to fly quadcopter or other RC models is very important. BETAFPV ExpressLRS Receivers including ELRS Lite, Nano, Micro, and the newest SuperD, greatly fulfill pilots’ requirements for FPV flying.

	SuperD RX	Micro RX	Nano RX	Lite RX
Weight	1.1g (RX only)	3.5g (RX only)	0.7g (RX only)	0.47g (Tower), 0.53g (Flat)
Antenna	IPEX MHF + T antenna	IPEX MHF + T antenna	IPEX MHF + T antenna	SMD ceramic antenna
MCU	ESP32-PICO-D4, dual SX1280	ESP8285	ESP8285	ESP8285
RF Chip	Dual SX1280 + Dual PA	SX128X	SX1280 + PA, SX1276 + PA	SX128X
Frequency	2.4GHz ISM	2.4GHz ISM	2.4GHz ISM, 915MHz (FCC), 868MHz (EU)	2.4GHz ISM
Telemetry Power	100mW	17mW	100mW	17mW
Serial Output Protocol	CRSF	PWM or CRSF	CRSF	CRSF
Model Type	FPV Drone, Fixed-wing aircraft	Fixed-wing aircraft, Helicopter, RC Cars, RC Boats	FPV Drone	Whoop Drone

Diagram

The diagram forSuperD ELRS 2.4G Diversity Receiver. Below picture is the front for RX.

The back of the RX is below.

SuperD receiver RGB status indication is shown below.

RGB Color	Status	Description
Rainbow	Fade effect	Power on
Green	Quick flash	WIFI upgrading mode
Red	Quick flash	No RF chip detected
Orange	Double flash	Binding mode
Orange	Triple flash	Connected, but mismatched model-match configuration
Orange	Slow flash	Waiting for connection
	Solid on	Connected and color indicates packet rate

The RGB light color corresponding to the packet rate is shown in the figure below.

Note: F1000 and F500 are packet rates in FLRC mode, providing faster modulation and lower latency, but at the same time having shorter reception distance than normal Lora mode. This mode is great for racers.

D500 and D250 are packet rates in DVDA (Deja Vu Diversity Aid) mode. This mode works at the F1000 data packet rate of FLRC mode, providing better link connection in the case of complex interference by sending the same data packet multiple times.D500 and D250 indicate that the same data packet is sent twice and four times respectively.
