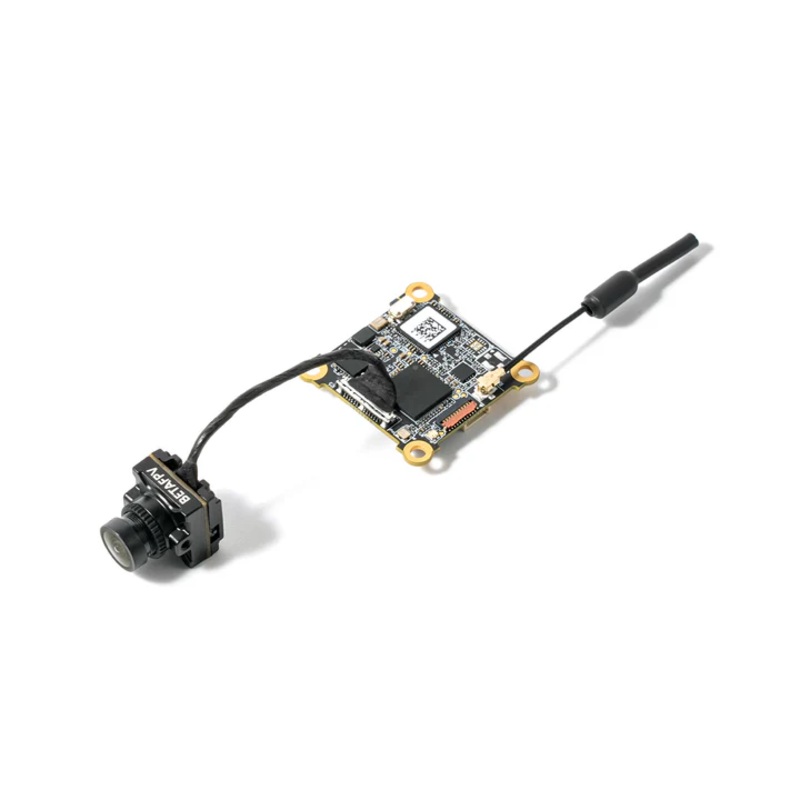

ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
Wide Angle 1080p Clarity: 1/2.9 CMOS sensor and 170 FOV for a crisp, immersive live view.

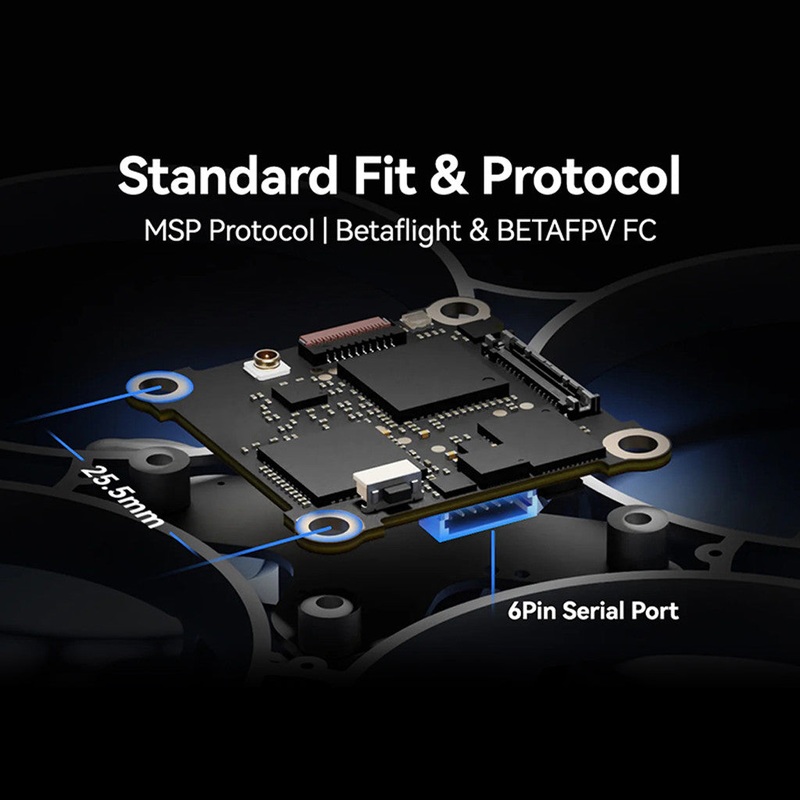

Plug and Play Compatibility: Standard 6 pin port works seamlessly with Betaflight and BETAFPV flight controllers.
============
Specifications
Air Unit
Weight:
Air Unit (Camera excluded): Approx. 3.61g
Air Unit (Camera included): Approx. 6.5g
Antenna: Approx. 0.44g
Mounting Hole Size 25.5*25.5mm
Mounting Hole Diameter 2.5mm
Dimensions (L*W*H) Air Unit: 30*30*5.5mm
Camera: 14*14*17mm
Ports SH 1.0 6-pin (FC)
SH 1.0 4-pin (USB)
VTX
Frequency 5.1-5.9 GHz
Effective lsotropic Radiated Power (EIRP)
200mW (FCC/SRRC)
<25mW (CE)
Video Transmission Range >5km
Video Transmission Latency Approx. 60ms
Live View Quality 1080p@60fps
Bandwidth 10MHz
Antenna Single antenna
Channels 3
Camera
Mounting Width 14mm
Mounting Hole M2
Image Sensor 1/2.9” CMOS
Lens Field of View (FOV): 170
Video Format MP4
Max Video Transmission Bitrate 20Mbps
OSD Canvas mode
Firmware
Input Voltage 5V
Operating Temperature -10 to 40
Compatibility
Supported FC Betaflight FC & BETAFPV FC
