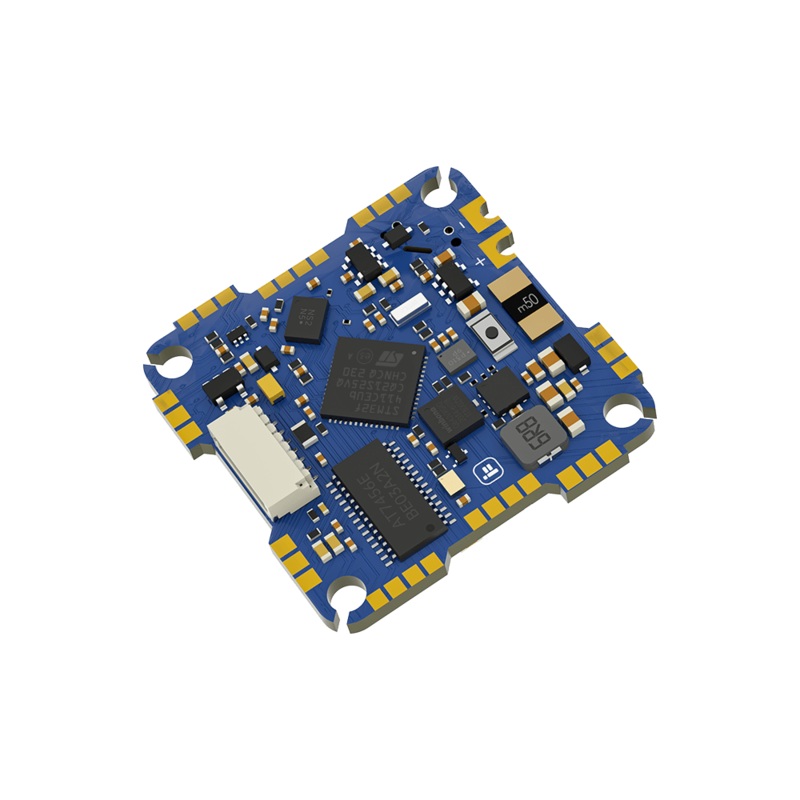

A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work. This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let’s go!
Specifications
Size30.5*30.5mm
Mounting pattern25.5*25.5mm/3mm
Weight: 7.5g
MCUSTM32F411
GyroBMI270
Blackbox8MB
BEC output: 5V 2A
ConfigIFLIGHT_F411_PRO.config
INA padnR2
BarometerNo
Constant current20A25ABurst
Input2-4S
Current sensoryes
BLHeliBLHeli-S (Bluejay)
ESC Telemetryno
Firmware TargetIFLIGHT_F411_PRO
ESC Firmware: Bluejay Q-H-50
Packing List
1 x BLITZ Whoop AIO F411
Wiring Diagram
https://drive.google.com/file/d/1CdC1kzvB2uetlOhZvoRs5TLpQWpu8zvr/view
