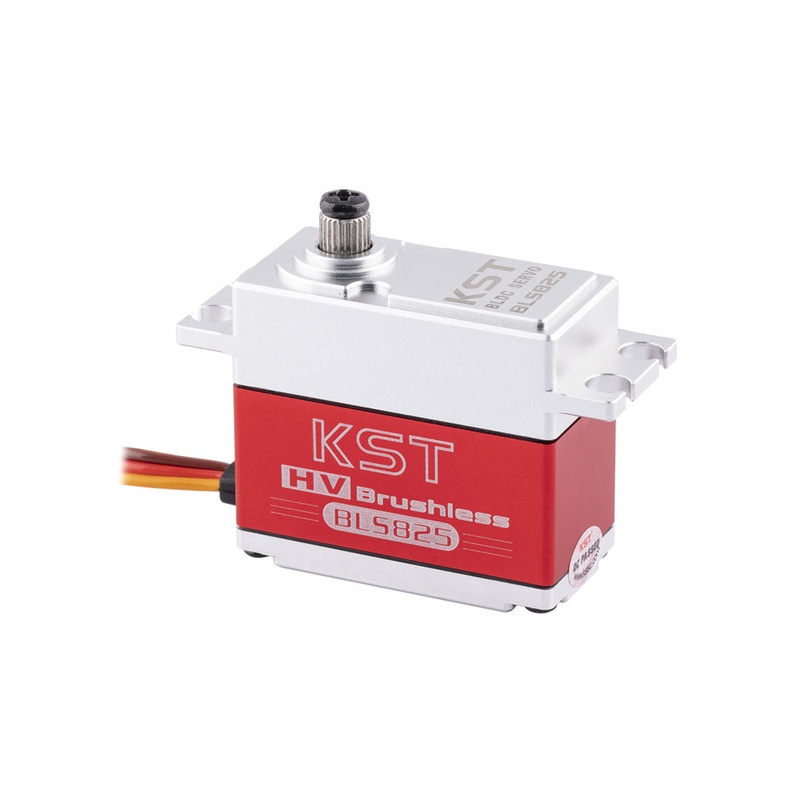

BLS825 V8.0 Brushless HV Metal Case Servo 35kg.cm 0.11sec/60 for 550-700 Class Helicopters

The KST BLS825 servo is equipped with a powerful brushless motor and was developed especially for surface models. Due to the high resetting accuracy, in conjunction with the very robust and backlash-free full metal gearbox, the KST BLS825 is ideal for scale and aerobatic models.

We also provide the BLS815 Brushless HV Servos.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Brushless DC Motor
• Two Ball Bearings
• Ideal for 550-700 Class Helicopters

Specification

• Item: BLS825 Brushless Servo
• Operation Voltage(rated): 7.4V
• Operating Voltage: DC6.0V-8.4V

• Size: 40.50*20*37mm

• Torque: [email protected], [email protected], [email protected]

• Speed: 0.11sec/[email protected], 0.13sec/[email protected], 0.15sec/[email protected]
• TravelAngle:50=100Total
• Weight: 70g

• Working Frequence: 1520us/333Hz

• Motor: Brushless

• Ball Bearing: 2BB

Related Products

• BLS815 Servo
• BLS825 Servo
• BLS805X Tail Servo
• BLS915 Servo
• BLS905X Tail Servo

Size

PackageContents

• 1 * BLS825 Brushless servo
• 1 Pack of Accessories

Download

• BLS825 Technical Specification
