SpecificationsKV:10001400No.of Cells(Lipo):3S-4SStator:0.2mm Kawasaki silicon steelBearings:NSK 8X3X4Bell cap:Al 7075Weight:27.08gConfiguration:12N14PRotor:N52H arc magnetsWire AWG:20AWG 160mmBase casing:Al 7075Bolt Pattern:M3 16×16

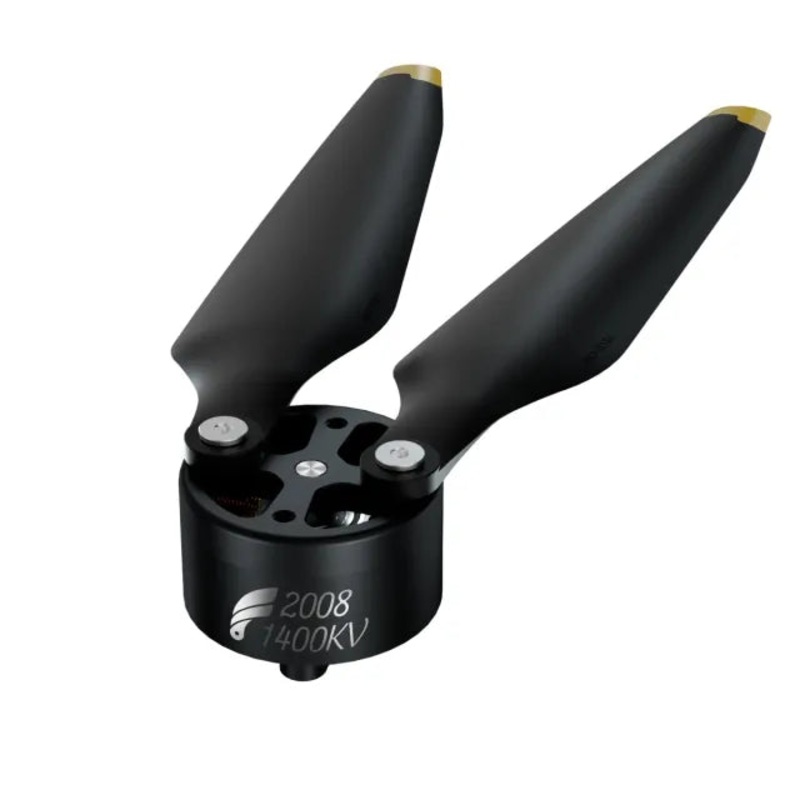

2008 NEW PRODUCT F2008 Can store folding propellers suitable for 8″/9″ efficienc Porcable powerFul 12008 1OOOK
Introducing a portable. efficient. and high-performance folding propeller. designed by a professional team for high-speed and strong-strength applications.
Featuring aviation-grade 7075 aluminum caps with hard-anodizing for durability. this motor boasts a hollow-carved design that not only saves weight but also enhances heat dissipation for optimal performance.
Featuring enameled wire windings with a high full-slot ratio. this motor boasts low internal resistance and reduced eddy current hysteresis loss for improved efficiency and performance.
F2008-3S-12.6V-20A – 1OOOKV-9453 Test Report Make hoppen F2008 Drawing 16 18.9 23.8 $17 1 4-3 F2008 Specification KV 10OOKV Configuration 12N14P Stator Dimension (mm) 20 Motor Dimension(mm) 023.8-18.9 AWG 20# 160mm Stator Height (mm ) Weight Including Cable (g) 27.08 Magnet N52H Internal Resistance(mQ) 379.30 Idle Current@1OV
Brother Hobby F2008 Camera Drone Motor Test Report: 3S. 12.6V. 20A. 1400KV. with specifications including propeller diameter (16-18mm). motor dimensions (23.8×18.9mm). stator height (mm) and weight including cable (27.75g).
F2008 Camera Drone Motor Test Report: 4S. 16.8V. 20A. 1000KV (9453 prop). Drawing includes motor dimensions: 23.8mm x 18.9mm x 17mm. with specifications for internal resistance and inductance values as follows:* Copper wire insulation: 50.16mm x 5.40mm* Internal copper wire diameter: 9.4mm + 5.3mm* Motor weight including cable: 35.28g* Dimensions: 23.8mm x 18.9mm x 17mm
