SpecificationsKV:1070KV / 1260KVStator:0.2mm Nippon SteelShaft:SUS 420Bolt Pattern:M316X16mmRotor:N48SHWire AWG:18# 300mmBase casing:Al 7075Configuration:12N14PNo.of Cells(Lipo):3SBearings:NSK 8x3x4Weight:70gBell cap:Ai 7075

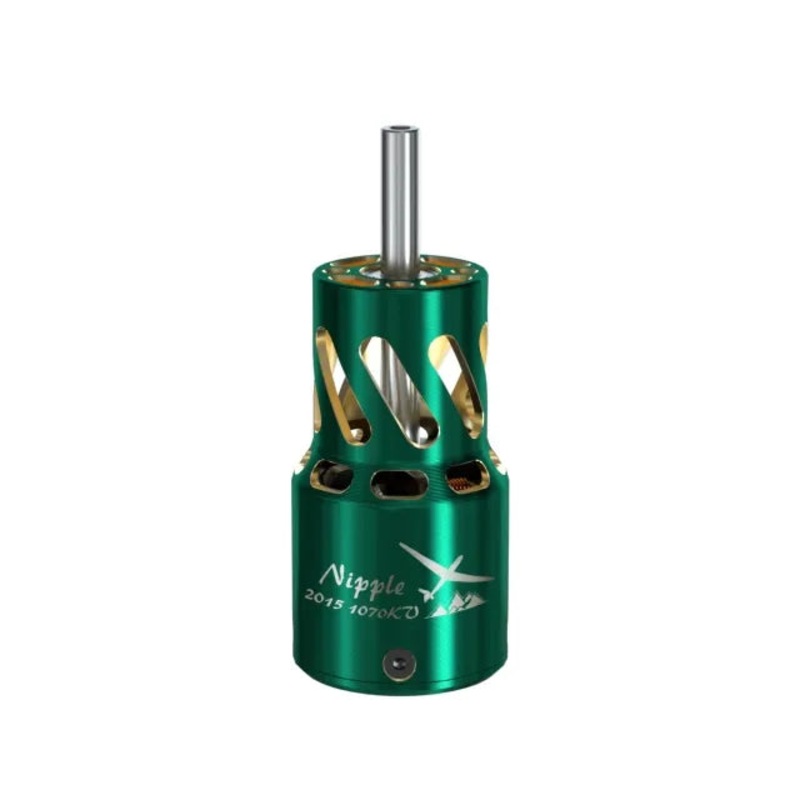

Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider drone motors: A compact, high-performance motor ideal for small-diameter gliders that reduces air resistance and provides efficient power output.
Brother Hobby Nipple 2015 Motor Specifications: KV rating – 1070KV, Propeller size – 12x6x2 inch Dualblade, ESC type – 35-40A Throttle (%), Maximum current – A, Input power – W, 100% throttle efficiency at 27.3V, 338.52W input power, Voltage – V, RPM – 7014, Thrust efficiency – 5gf/W.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor features a new heat dissipation structure designed to maintain strong power output during flight. Additionally, its high-efficiency and low-loss design minimizes heat loss, ensuring optimal performance.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor ensures a smooth operation across various flight postures, providing strong control and improved balance. Additionally, it features an excellent linear throttle response, offering a delicate and precise feel.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor features a robust design, incorporating four-point bearing support distribution and a one-piece steel shaft construction. This combination provides exceptional landing impact resistance, eliminating concerns about harsh landings.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor features a unique, hot dog-shaped protective shell design, which is specifically designed as an outer rotor motor. Additionally, the rear leading-out wire configuration makes it ideal for use in remote control gliders, particularly when installed at the nose of the aircraft.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor boasts a robust design featuring four bearings, an N48SH arc magnet, and an Aluminum alloy base. The motor also features a durable Aluminum case and high-grade enameled wire construction.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor features an integrated external rotation design, providing high torque and a convenient rear leading-out wire configuration. Additionally, the motor is easy to install, with specifications including dimensions of 72.70mm x 40.82mm x 18.20mm, as well as a lug size of 27.70mm and a screw pitch of #3.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor has undergone prop testing and achieved impressive results. The motor’s specifications include dimensions of 72.70mm x 40.62mm x 18.20mm, as well as a lug size of 30mm and a screw pitch of 16mm. Additionally, the motor features a prop adapter with a diameter of 27.7mm and is compatible with 4xMJ props.
The Brother Hobby Nipple 2015 1070KV/1260KV 3S Glider Motor has been tested and meets rigorous standards. According to its specification, this motor features a KV rating of 1260, with a configuration of 12NI4P. The stator dimension is 20.00mm x 27.77mm, with a motor dimension of 72.7mm. Additionally, the motor uses AWG 18 wire and has a stator height of 300mm.
