Overview
BrotherHobby SE 2807 1300KV Motor (CW) is a brushless motor designed for 6S setups, featuring a 12N14P configuration, 7075 aluminum casing/bell, and an M5 prop adapter shaft thread. Bench test data is provided for an HQ 7.0×3.5×3 propeller.
Key Features
- KV rating: 1300KV
- Configuration: 12N14P
- Base casing / bell cap: Al 7075
- Shaft material: SUS420 (heat-treated steel shaft noted)
- Stator: 0.2mm Kawasaki silicon steel
- Rotor / magnet: N52H (arc magnets noted)
- Bearings: Japanese NMB 12 x 6 x 4
- Mounting: M3 (19 x 19mm), 4 x M3
- Wire: 18# (20cm / 200mm length)
For compatibility questions (props, ESC sizing, mounting), contact [email protected] or visit https://rcdrone.top/.
Specifications
| Model | SE 2807 |
| KV | 1300KV |
| Rotation | CW |
| No. of Cells (LiPo) | 6S |
| Configuration | 12N14P |
| Base casing | Al 7075 |
| Bell cap | Al 7075 |
| Stator material | 0.2mm Kawasaki silicon steel |
| Stator dimension | 28.00 mm |
| Stator height | 7 mm |
| Motor dimension | 33.2 – 33.35 mm |
| Bolt pattern | M3 (19 x 19mm) |
| Prop adapter shaft thread | M5 |
| Shaft | SUS420 |
| Bearings | Japanese NMB 12 x 6 x 4 |
| Rotor / magnet | N52H (arc magnets) |
| Wire AWG | 18# 20cm length (18# 200mm length) |
| Weight | 48g |
| Weight including cable | 48.00 g |
| Internal resistance | 80.00 m |
| Idle current @ 10V | 1.02A / 10V |
| Max power | 1000.14 W |
| Max current | 42.20 A |
| Dynamic balance requirement standards | 3mg |
| Propeller (test) | 7 inch (HQ 7.0×3.5×3) |
| ESC (spec sheet) | 6S 50A |
| Insulation resistance | 0.5M |
| Coil test | PASS |
| Max pull force (bench test) | 2.5kg+ (Thrust: 2538 g) |
Drawing dimensions (as labeled)
- 19
- M5
- 4 x M3
- 33.35
- 28.10
- 14
- 8
- 33.20
Prop test report (HQ 7.0×3.5×3, 6S)
| Throttle (%) | Voltage (V) | Current (A) | RPM | Thrust (gf) | Input Power (W) | Thrust efficiency (G/W) |
|---|---|---|---|---|---|---|
| 30 | 24.00 | 3.00 | 8569 | 407.00 | 72.00 | 5.65 |
| 40 | 24.00 | 5.20 | 10635 | 593.00 | 124.80 | 4.75 |
| 50 | 24.00 | 9.00 | 12323 | 892.00 | 216.00 | 4.13 |
| 60 | 24.00 | 13.60 | 15062 | 1164.00 | 326.40 | 3.57 |
| 70 | 23.90 | 19.20 | 16816 | 1466.00 | 458.88 | 3.19 |
| 80 | 23.90 | 27.10 | 19185 | 1932.00 | 647.69 | 2.98 |
| 90 | 23.80 | 36.00 | 20539 | 2301.00 | 856.80 | 2.69 |
| 100 | 23.70 | 42.20 | 21523 | 2538.00 | 1000.14 | 2.54 |
Temperature note (from test sheet): motor inside copper wire temperature running 2 min at 100% throttle is 98.5C (ambient temperature is 26C). Test base on bench for reference only.
Whats Included
- 2807 motor x1
- M3*8 screw x4
- M5 flange nut x1
Applications
- 6S multirotor builds using 7-inch propellers (based on the provided prop test setup)
Details

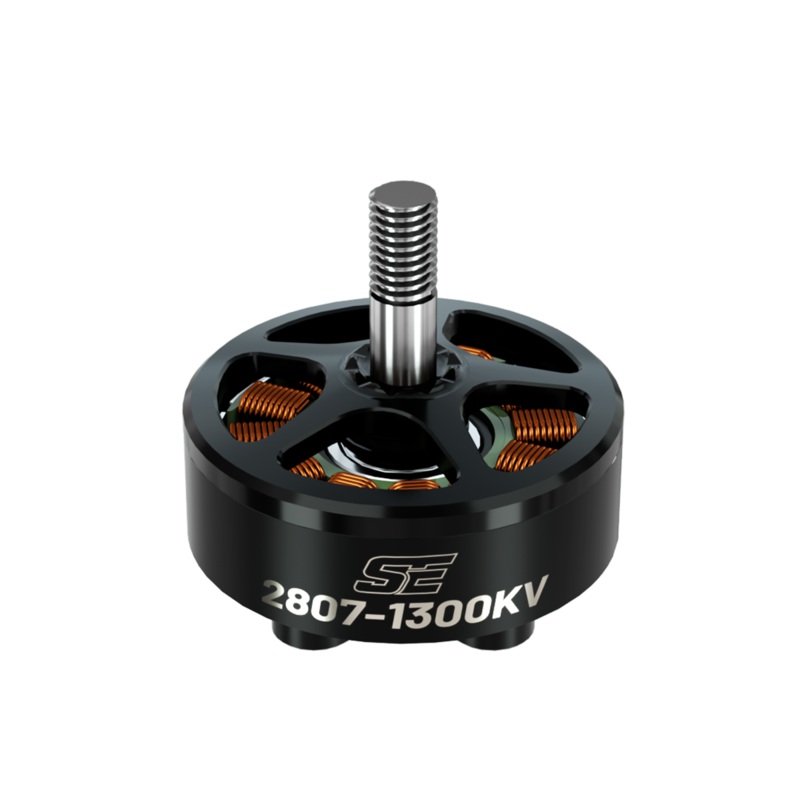

The BrotherHobby SE 2807 1300KV CW brushless motor features a compact black can with a threaded prop shaft for straightforward prop mounting.
BrotherHobby SE 2807 1300KV brushless motor specs list 48.0g weight and up to 2538g thrust with an HQ 7.0×3.5×3 prop at 23.7V.
The BrotherHobby SE 2807 1300KV CW brushless motor is designed to pair well with 7-inch prop setups for fast, responsive flight.
The SE 2807 1300KV motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H magnets, and a high-fill stator with 10AWG wire for a durable build.
BrotherHobby SE 2807 motor hardware includes four M3x8 screws and a flange nut for a straightforward install.
BrotherHobby SE 2807 1300KV motor specs include a 4mm shaft and a 33.2mm motor diameter, along with 6S test data for a 7-inch prop.
